This Econetic DWS-37M/55M/75M page is specifically about granite quarrying and two mining layouts: wire-saw-only extraction and a combination of circular saw vertical cuts with a diamond-wire bottom cut.
Choose the mining layout before the model
For wire-saw mining, the main flywheel drives a closed loop of diamond wire through the granite. In the combined method described on the old page, a quarry circular saw cuts the vertical faces and the wire saw completes the horizontal bottom cut. The source associates that method with small and medium mechanised granite quarries with a complete ore body.
Show the intended faces, bench dimensions and block handling in a quarry drawing; the machine cannot be selected from motor power alone.
Three permanent-magnet models
| Model | Main motor | Maximum cut spacing | Main-unit weight |
|---|---|---|---|
| DWS-37M | 37 kW | 1750 mm | 2515 kg |
| DWS-55M | 55 kW | 1950 mm | 2820 kg |
| DWS-75M | 75 kW | 2100 mm | 3650 kg |
The old page reports up to 30% greater efficiency than standard machines; verify that manufacturer claim on comparable granite cuts.
Combined-mining enquiry
- Granite and ore-body/bench drawing
- Vertical circular-saw and bottom-wire cut sequence
- Available power, water and access
- Selected DWS model, rails, wire and pulley layout
- Block release and acceptance record

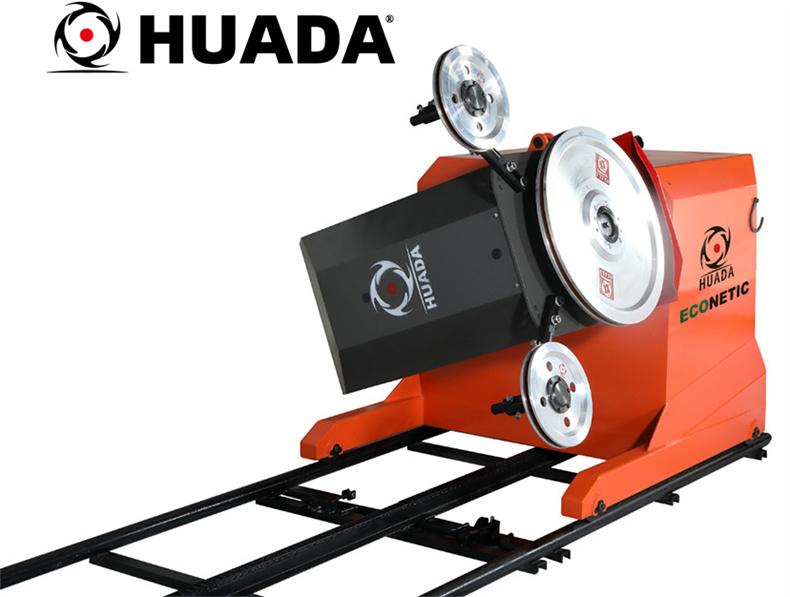

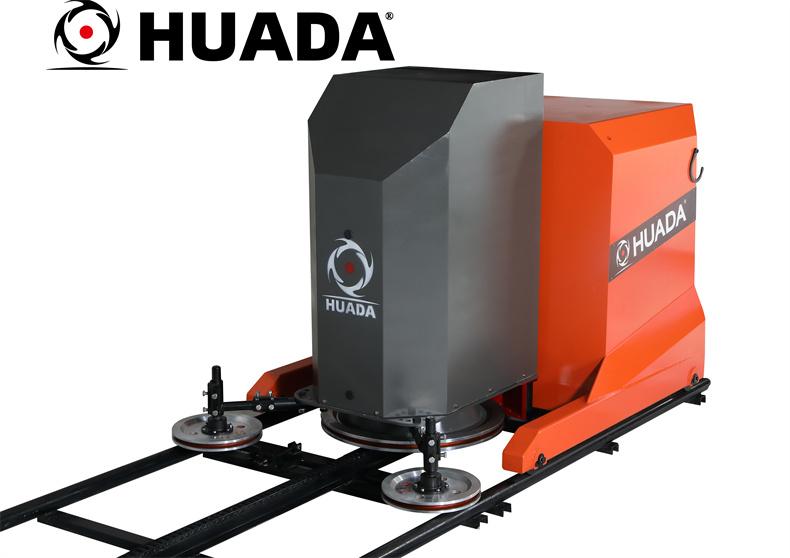

Original product images
