Introduction:

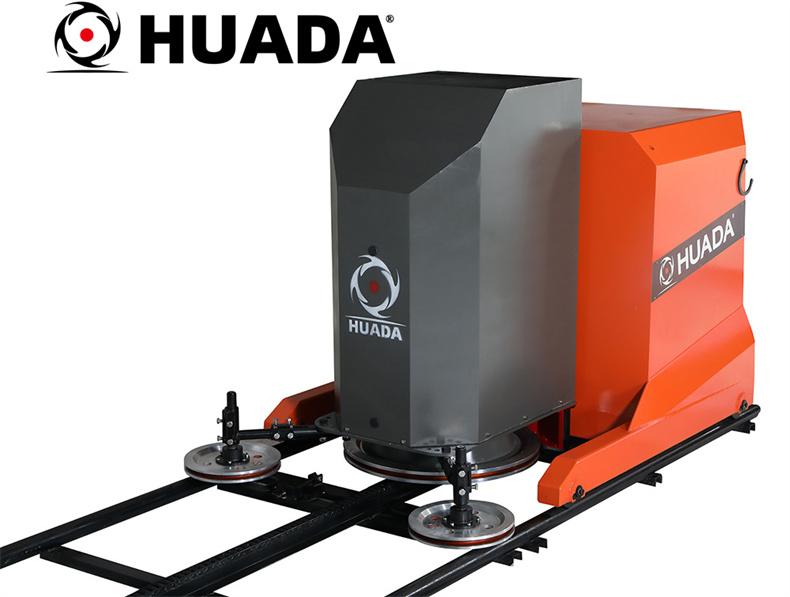

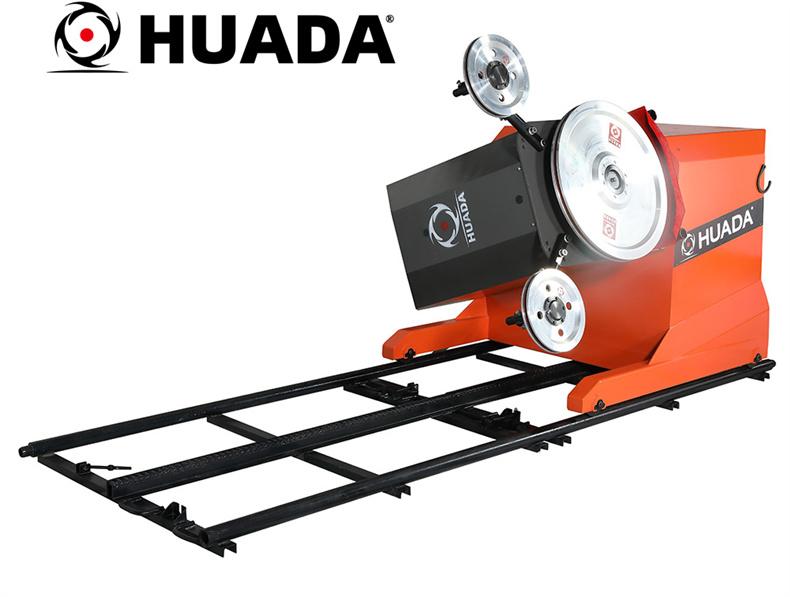

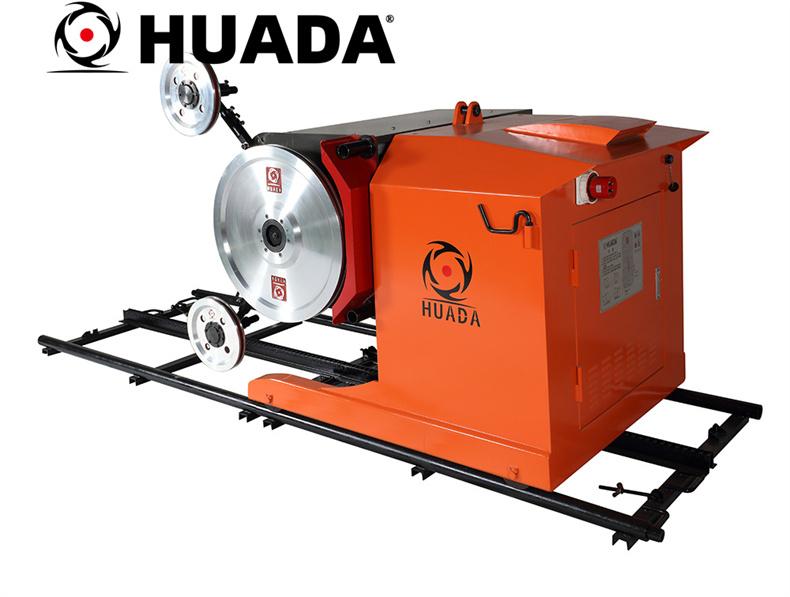

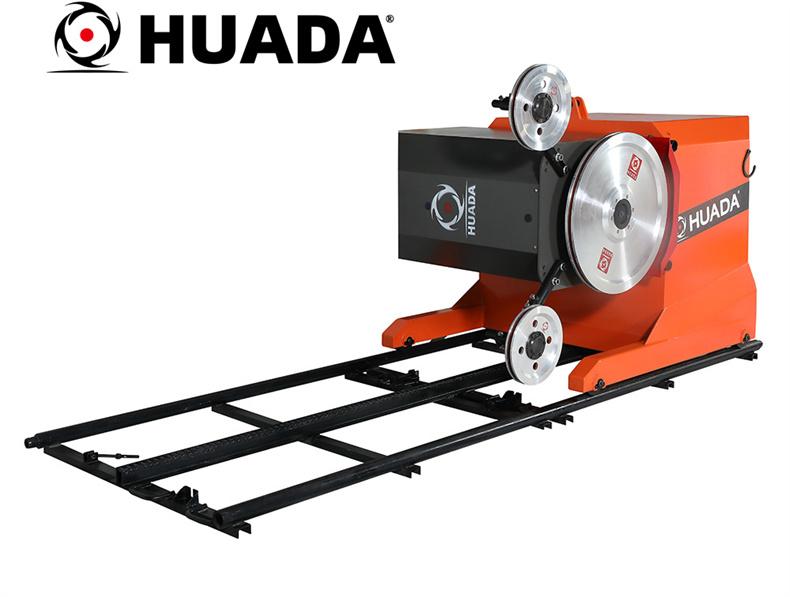

Marble quarry Diamond Wire Saw Machine DWS-37/55/75
Price:>5000$ Please contact with the customer service for specific price details
+8619859567581
Marble quarry wire saw machine Features
Suitable for quarrying all types of stones:
1、Brand inverter and PLC, combined with the full benefits of a digital communication system and real-time current tracking technologies, ensure the constant tension of diamond wire for more efficient cutting and longer life.
2、The automatic control software features multi-language digital display and data storage system. Having been used in quarry practice for over 20 years, the cutting parameters and operational statistics have been fine tuned to meet the customers’ needs.
3、The structural strength, ventilation and heat dissipation of the whole machine are analyzed using digital simulations to ensure continuously stable operation of the machine for extended period of time, especially suitable for severe working conditions in quarry.
4、Built-in speed regulating interface and total protection function ensure safe operation of the machine.
5、Many functional options are available to meet the unique quarrying needs of different customers.
Other functional options:
Optional IOT ( Internet Of Things) functions: remotedata collection and real-time online monitoring of machine operation.
Optional mode of operation: wired control or wireless remote control.
Optional control panel: touch screen digital display or analog push button style.
Optional inverter brands: Inovance, EuRa, Schneider or other brands.
Optional guide rail length: 1m sections and 3m sections.
Various wheel brackets and other auxiliary accessories are available.
Wire Saw Machine Parameters
Product model |
DWS-37 |
DWS-55 |
DWS-75 |
Main motor power (kW) |
37 |
55 |
75 |
Total motor power (kW) |
40 |
58 |
79 |
Headpiece overturning |
±180° |
±180° |
±180° |
Linear velocity of main flywheel (m/s) |
0~40 |
0~40 |
0~40 |
Maximum cut spacing (mm) |
1750 |
1950 |
2100 |
Rail length (m) |
2m*3 sections |
2m*5 sections |
2m*5 sections |
Rail weight/section (kg) |
80 |
83 |
85 |
Weight of main unit (kg) |
2515 |
2820 |
3650 |
Machine dimensions (L*W*H) (mm) |
2100*1410*1500 |
2100*1550*1650 |
2210*1700*1750 |
Machine dimensions (L*W2*H2) (mm) |
2100*1300*1680 |
2100*1480*1780 |
2210*1550*1950 |
Wire diameter 0.45-0.65mm: material yield rate exceeds 97% Increases efficiency 1.5-2 times that of conventional cutting, and cancut hard stones; No vibration, low noise A wide range...
The stone industry relies heavily on efficient cutting machines to process various materials, and wire saw machines are a popular choice for steel cutting. These machines offer numerous...
Features : An advance type of dws equipped with permanet magnet Technology offering additional features for quarrying all types of stones: Eco-friendly and up to 30% more efficient th...
