This 30 kW permanent-magnet wire saw is for shaping and trimming stone. Its old description concentrates on whole-machine lifting, alternative rope paths and mechanical adjustment of the cutting angle rather than quarry bench production.
Source specifications for the trimming unit
| Main motor | 30 kW permanent-magnet motor |
|---|---|
| Main flywheel | 650 mm |
| Single stroke | 1800 mm |
| Listed cutting efficiency | 6–10 m²/h |
| Saw-rope length | 10–40 m |
The source compares the 30 kW motor's cutting efficiency with a 37 kW ordinary motor. Treat that as a manufacturer comparison to be checked on a representative block.
Positioning and rope-path features
The complete machine can be hoisted for relocation. The old page also lists several rope-winding methods that avoid cutting the wire, an adjustable small-flywheel height and lifting outriggers/foot plates for changing the cut inclination by ±10°. Show the required block face and site clearance so these adjustments can be planned before setup.
Shaping trial checklist
- Block material, dimensions and marked trim plane
- Available lifting method and machine position
- Chosen rope route and required cut inclination
- Power, water, wire and guide arrangement
- Finished geometry, surface and wire-use record
Photograph the accepted machine and rope position for reuse.

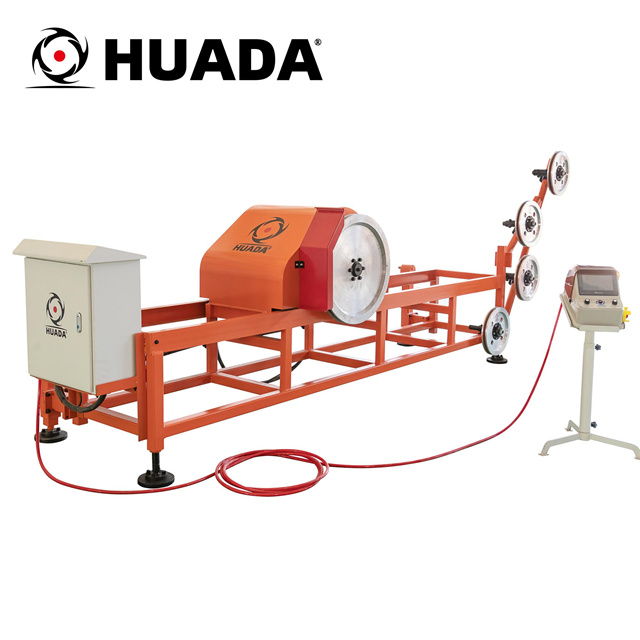

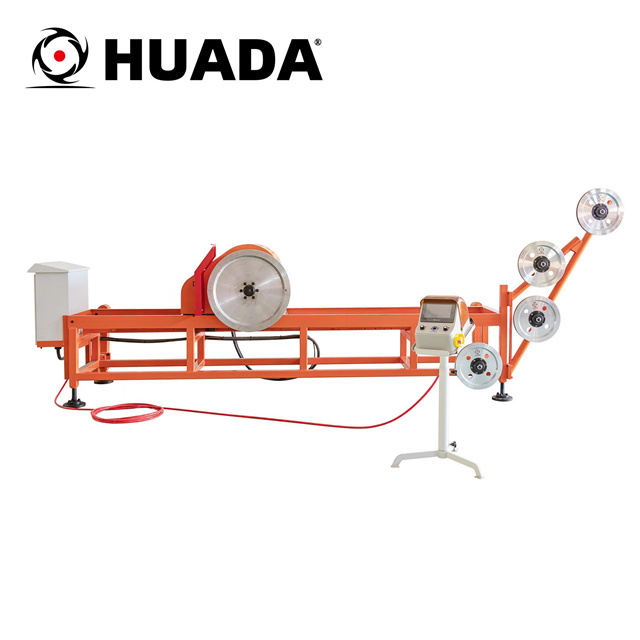

Original product images
