This 30 kW permanent-magnet trimming machine is intended for reshaping marble and granite waste blocks. The old page distinguishes it from row-hole drilling and splitting, fixed wire-saw installations and vehicle-mounted arm saws; the compact wire-saw arrangement is the subject of this product record.
Work the machine is intended to cover
The source describes small and medium-sized diamond wire equipment used to trim irregular marble or granite material. For a useful proposal, mark the waste block, the face to be removed and the finished block size. That information determines the wire path, machine position and the rail travel needed for the cut.
A permanent-magnet motor is the defining drive detail on this page. The final electrical offer should still state the supply, inverter, controls and protection supplied with the machine.
Figures retained from the old specification
| Main motor | 30 kW permanent-magnet motor |
|---|---|
| Main flywheel | 650 mm |
| Single stroke | 1800 mm |
| Listed cutting efficiency | 6–10 m²/h |
| Saw-rope length | 10–40 m |
The efficiency range is a value from the source sheet, not a guaranteed result for every block. Stone condition, cut area, wire specification, cooling and operator settings affect the measured output.
Prepare a block-trimming trial
- Identify marble or granite and provide a representative block photograph
- Show the cut plane, entry clearance and required finished dimensions
- Confirm the power supply and water available beside the block
- List the wire, rail and guide-wheel package in the quotation
- Record cut area, time, surface condition and wire use on the first comparable block

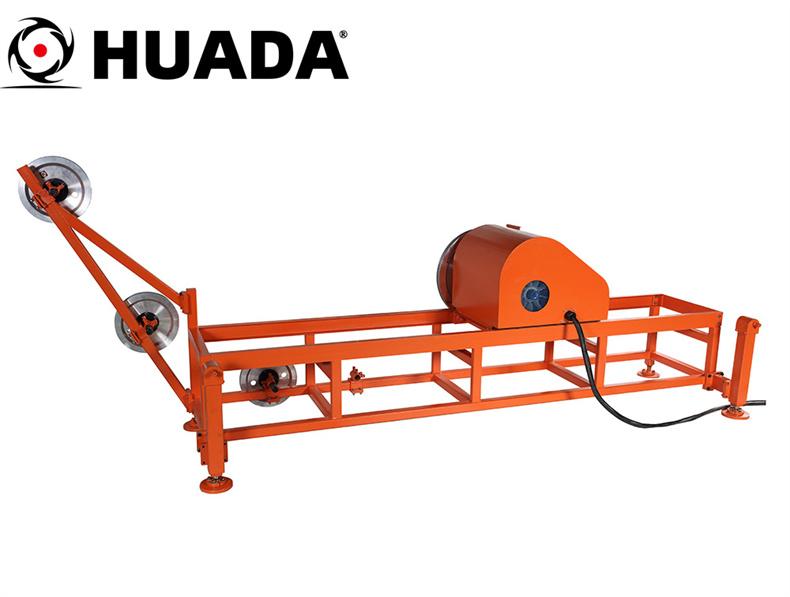

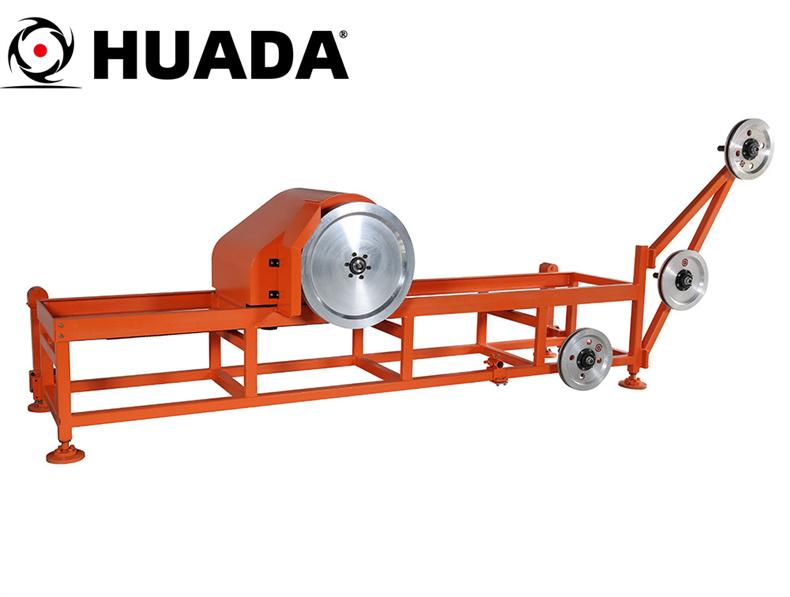

Original product images
