Introduction:Concrete Slabs, Foundations, and Walls: Ideal for cutting through standard and reinforced concrete structures.
Construction and Demolition: Useful in both new constructions and for cutting concrete during demolition work.
Price:
+8619859567581
H.E.D Diamond Saw Blade is truly the finest professional quality in the market, with Huada Even Distribution technology it can cuts more than 20% longer with high efficiency.
Features:
Excellent sawn finish
Consistent performance
Available in range of diameter 105mm to 1600mm

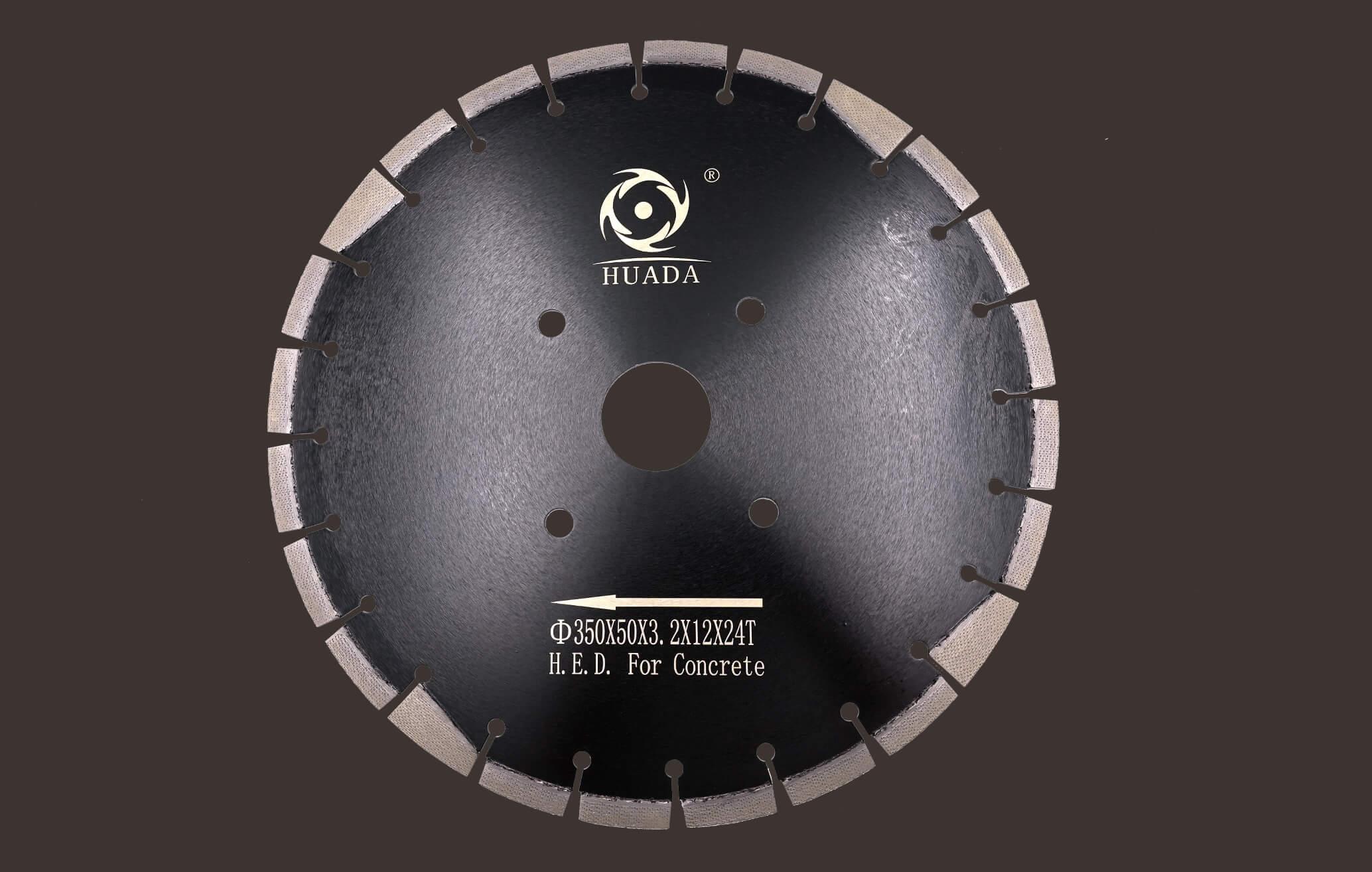

The H.E.D Diamond Saw Blade Laser Welded for Concrete is engineered to tackle tough concrete cutting tasks efficiently and reliably. Built with durability and speed in mind, it offers several features that make it particularly suitable for concrete applications.

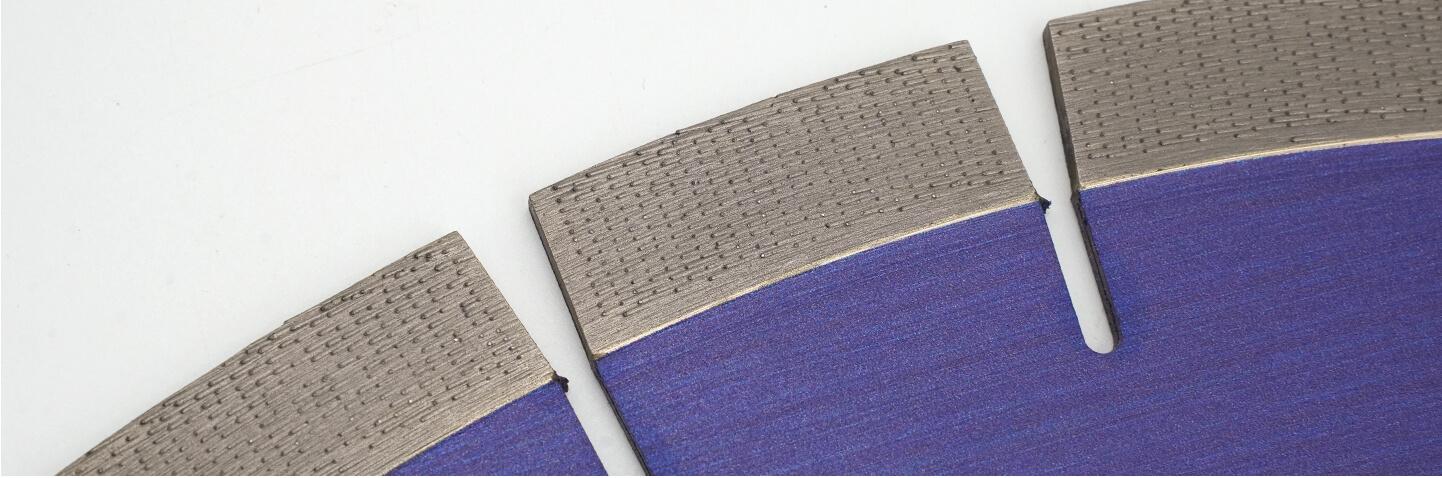

Laser-Welded Bonding: The diamond segments are laser-welded to the core, ensuring maximum bond strength. This process increases the blade’s durability, allowing it to withstand the high pressure and friction associated with concrete cutting.
High-Quality Diamond Segments: These blades contain premium-grade diamonds and a tailored diamond concentration for sharp, precise cuts. The segments are optimized for concrete's dense and abrasive nature, providing both fast cutting speed and extended blade life.

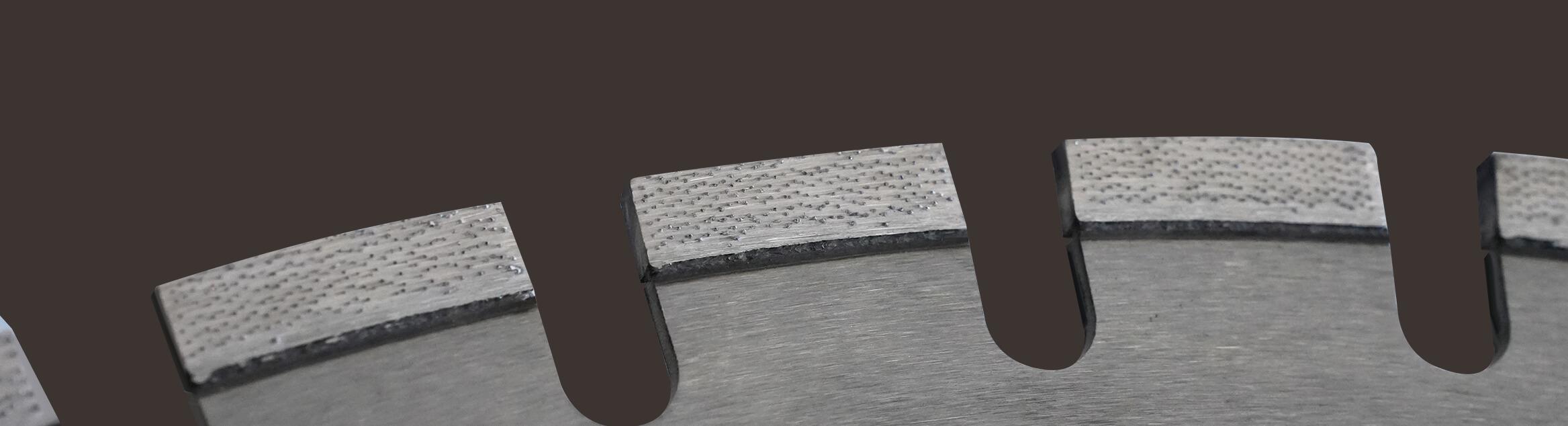

Cooling Design: Many versions come with cooling holes or specially designed segments to dissipate heat, preventing overheating and prolonging the blade’s life even under heavy, prolonged use.
Versatile Cutting Capability: Suitable for both wet and dry cutting, this blade can be used on a variety of cutting tools, from handheld saws to walk-behind saws, making it versatile for a range of project sizes and types.
Efficient and Smooth Cutting: Its design allows for reduced friction and vibration, which leads to a smoother cut, improving accuracy and reducing user fatigue.
The H.E.D Laser Welded Diamond Saw Blade for Concrete provides the durability and precision needed to cut through tough concrete reliably, whether you're doing structural work or surface cutting.
Disc type |
Diameter(mm) |
Segment size(mm) |
Core diameter(mm) |
Disc thickness(mm) |
Segment number |
NO.of normal segment |
NO.of protective segment |
With Protective segment |
300 |
40*3.0*12 |
20 22.23 25.4 50 60 |
2.2 |
21 |
18 |
3 |
350 |
40*3.2*12 |
2.4 |
24 |
20 |
4 |
||
400 |
40*3.6*12 |
2.8 |
28 |
24 |
4 |
||
450 |
40*4.0*12 |
3 |
32 |
28 |
4 |
||
500 |
40*4.0*12 |
3.2 |
36 |
32 |
4 |
||
Normal segment |
300 |
40*3.0*12 |
2.2 |
21 |
21 |
0 |
|
350 |
40*3.2*12 |
2.4 |
24 |
24 |
0 |
||
400 |
40*3.6*12 |
2.8 |
28 |
28 |
0 |
||
450 |
40*4.0*12 |
3.0 |
32 |
32 |
0 |
||
500 |
40*4.0*12 |
3.2 |
36 |
36 |
0 |
||
600 |
40*4.6*12 |
3.6 |
42 |
42 |
0 |
||
800 |
40*5.5*12 |
4.5 |
46 |
46 |
0 |
||
*Recommended linear speed for soft concrete is 40-50 m/s |
|||||||
*Recommended linear speed for hard concrete is 35-45 m/s |
