This DBM1500 granite rock-cutting page is the Econetic, permanent-magnet entry in the double-blade range. Its source highlights PLC/inverter dual protection for blade jamming or nipping and separates safety, efficiency and stability as selection themes.
DBM1500 row in the shared quarry table
| Recorded model | DBM1500-2100/GV |
|---|---|
| Cut width | 1500–2100 mm |
| Maximum cut depth | 1550 mm |
| Track spacing | 1290 mm |
| Main motors | 75 kW × 2 |
| Total power / water | 158 kW / 5 m³/h |
The source blade range is Φ2400 × 2 to Φ3600 × 2 for this row.
Protection must be verified on the delivered control
The old description says the PLC and frequency converter stop the machine immediately for abnormal blade jamming or nipping. Include the sensors, logic, alarm indication and reset procedure in commissioning. A statement on the webpage is not a substitute for checking the actual machine and operator manual.
The source also labels efficiency and stability as features without publishing separate test figures. Define the representative granite cut, observation period and acceptance owner before those claims are formally evaluated at the quarry.
DBM1500 quarry brief
- Granite sample, block plan and required width
- Blade/segment specification and cutting depth
- Track foundation, alignment and clearance
- Power and water at the machine position
- Protection test and acceptance-cut procedure

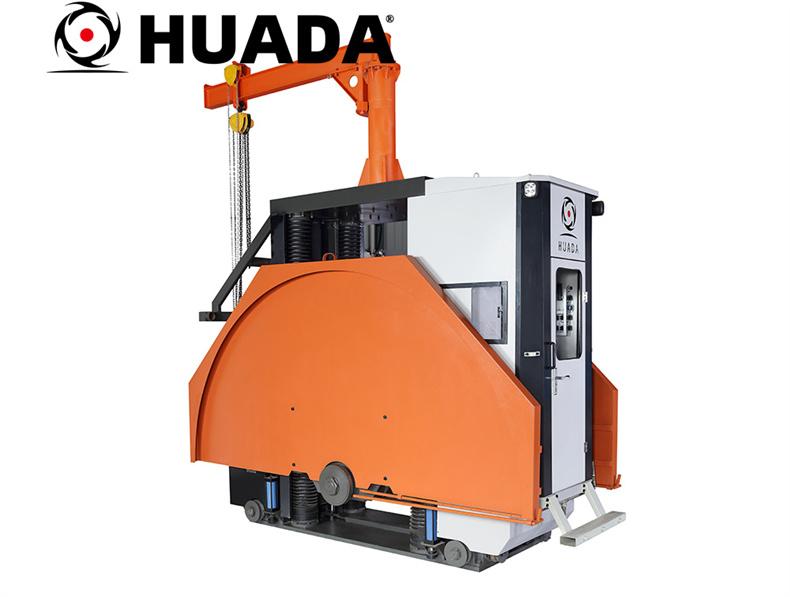

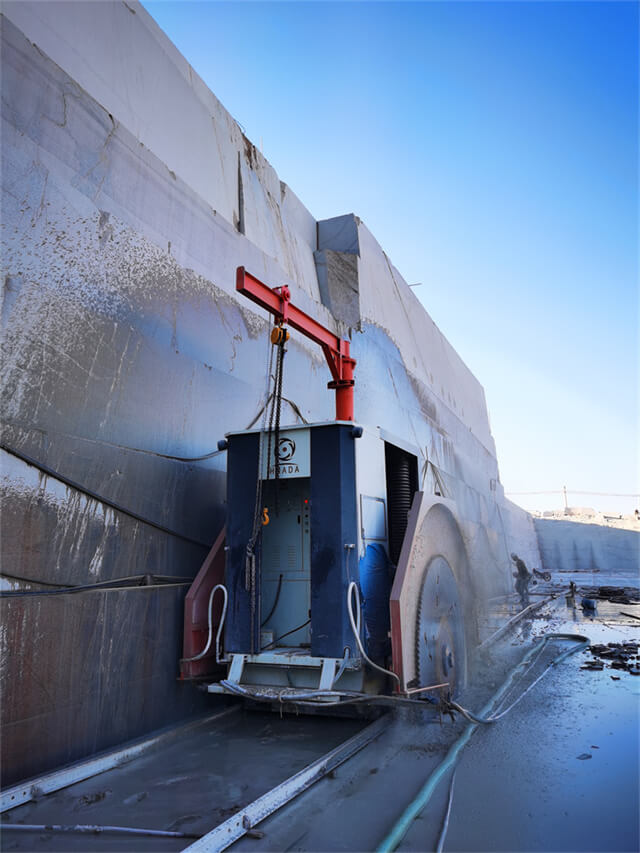

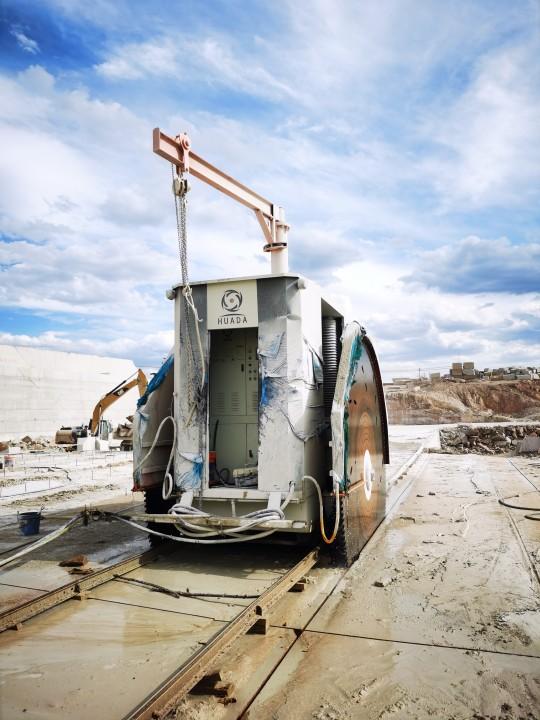

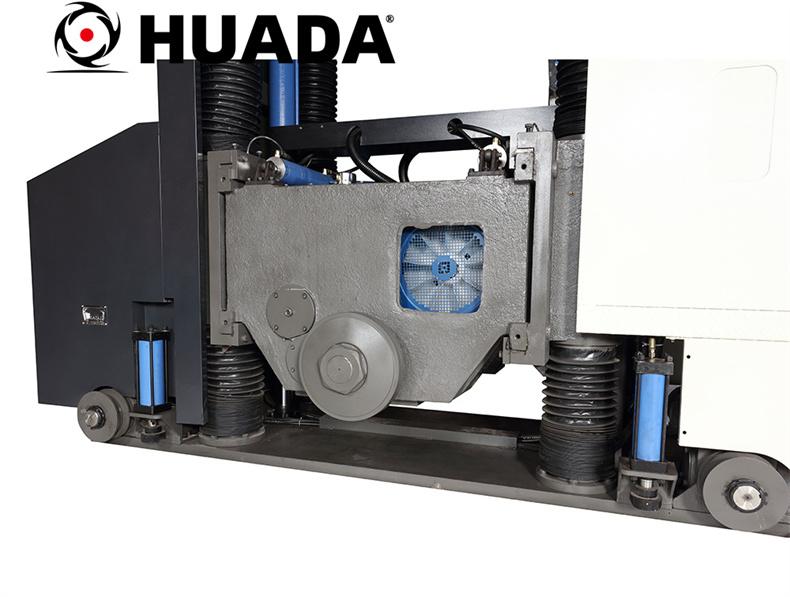

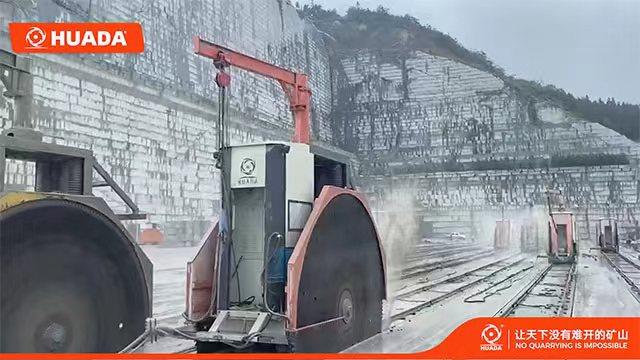

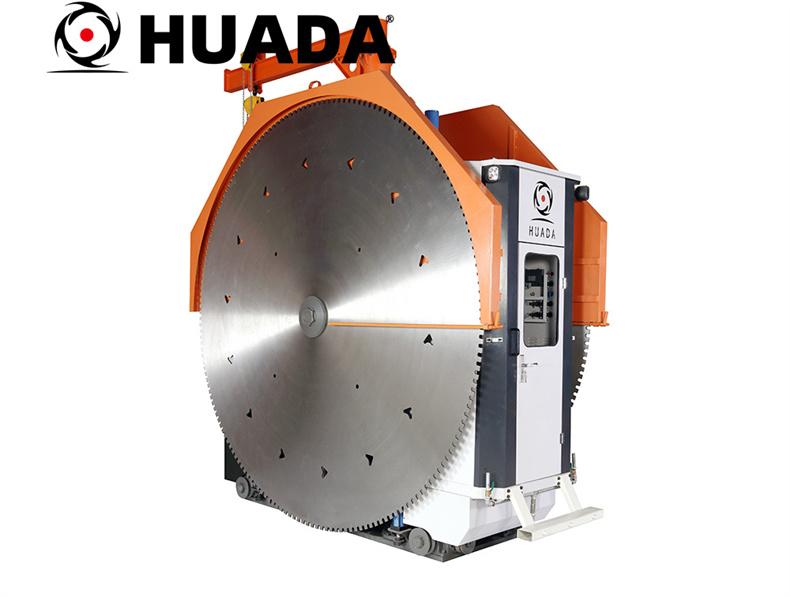

Original product images
