This HD1360 page describes the mechanically focused HD Series double-blade machine for granite quarrying. Belt drive, protected guide pillars, double-chain travel and quarry-rated electrical components are its defining notes.
Mechanical features retained from the old page
- Belt drive intended to reduce exposure of the motor and gear system
- Four enclosed, chrome-plated and finely ground guide pillars
- Double-chain transmission on the two travel drives
- Closed modular four-wheel-drive layout for maintenance access
- Electrical controls selected for low voltage, dust and humidity
HD1360 identity needs confirmation against the table
The title says HD1360 and the narrative says HD Series, while the saved table uses model code DBM1360-1900/GV. That row lists a 1360–1900 mm cut width, 1550 mm maximum depth, 1140 mm track spacing, two 75 kW main motors, 158 kW total power and 5 m³/h water consumption. Ask the quotation and drawing to resolve the HD/GV suffix before ordering.
Granite-bench preparation
- Confirm the exact model code and blade range.
- Survey track foundation, spacing and working clearance.
- Record granite, required block width and cut depth.
- Verify power, water, handling and installation scope.
- Agree a representative cut and mechanical inspection record.
The mixed page labels should remain visible as a clarification point, not be silently harmonised.

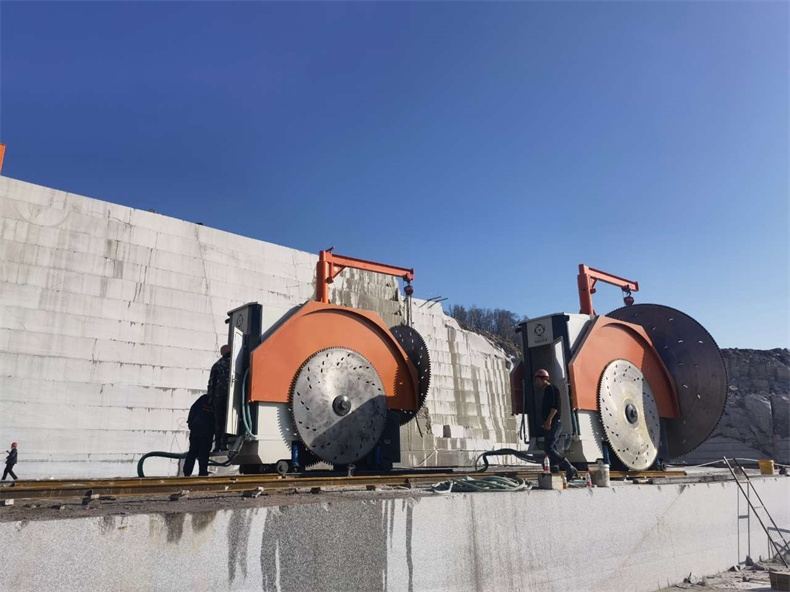

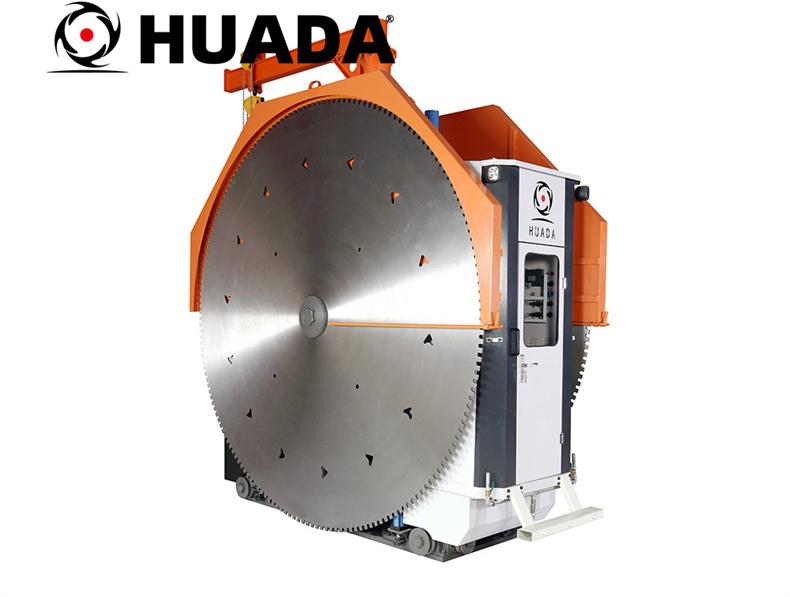

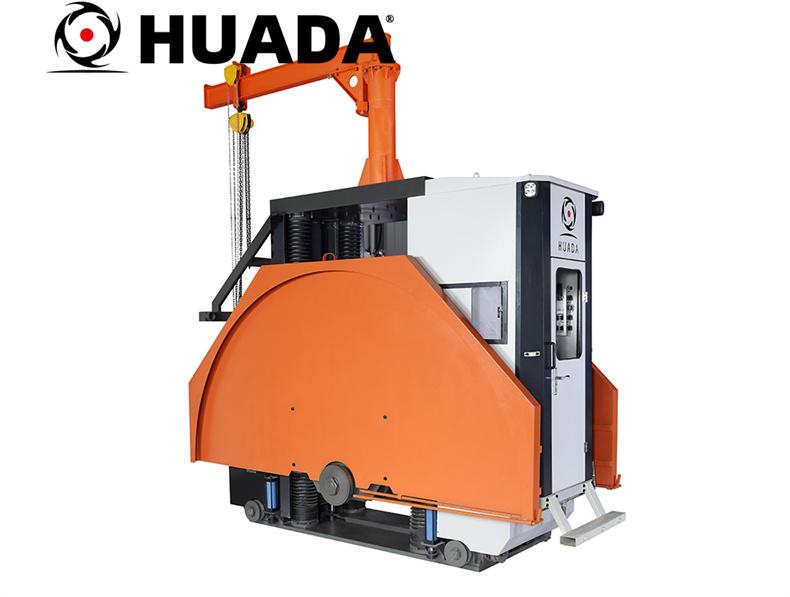

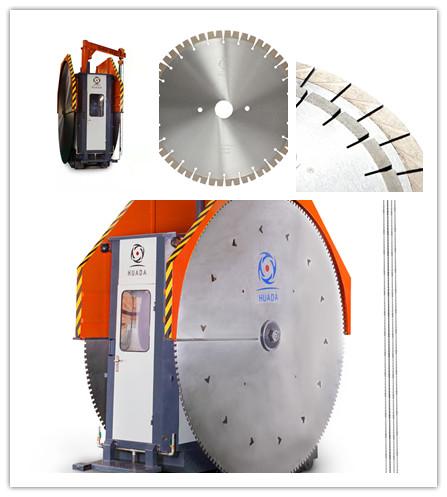

Original product images
