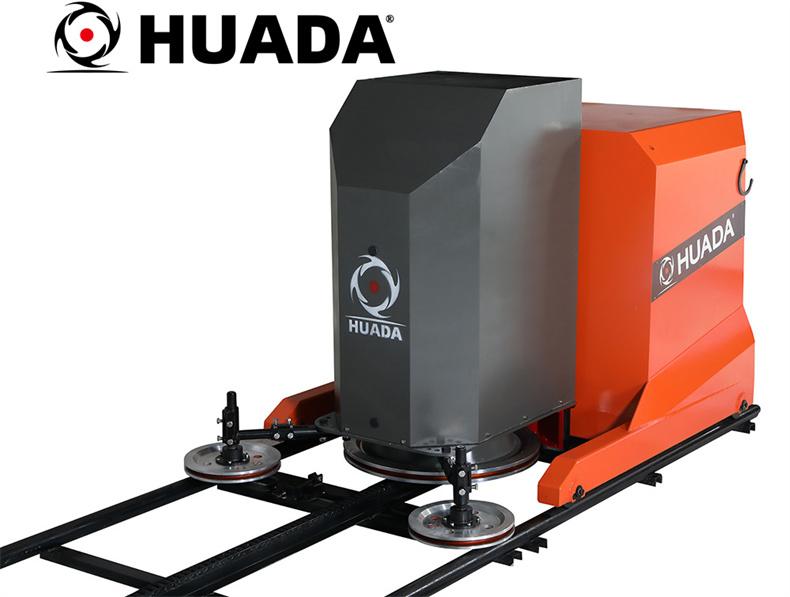

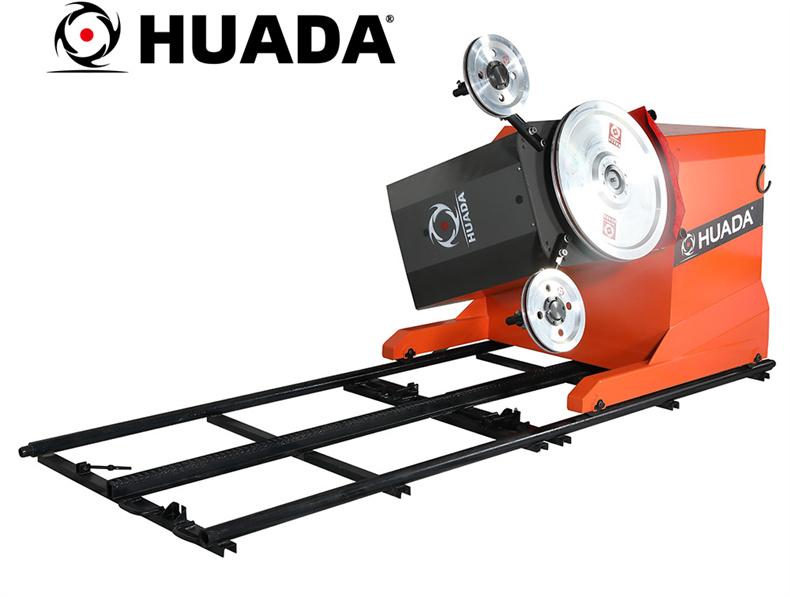

stones quarry marble wire cutting machine

Introduction:stones quarry marble wire cutting machine DWS-37/55/75

Price:>5000$ Please contact with the customer service for specific price details

Sales Tel:

+8619859567581

stones quarry marble wire cutting machine Features


Suitable for quarrying all types of stones:
1、Brand inverter and PLC, combined with the full benefits of a digital communication system and real-time current tracking technologies, ensure the constant tension of diamond wire for more efficient cutting and longer life.
2、The automatic control software features multi-language digital display and data storage system. Having been used in quarry practice for over 20 years, the cutting parameters and operational statistics have been fine tuned to meet the customers’ needs.


diamond wire saw machine
3、The structural strength, ventilation and heat dissipation of the whole machine are analyzed using digital simulations to ensure continuously stable operation of the machine for extended period of time, especially suitable for severe working conditions in quarry.
4、Built-in speed regulating interface and total protection function ensure safe operation of the machine.
5、Many functional options are available to meet the unique quarrying needs of different customers.

As a marble quarrying machine, marble wire cutting machine has the following advantages:
Environmental protection, no dust and noise pollution, and will not have a great impact on the surrounding residents; High yield, significant increase in mining income, small sawing gap and almost no loss of stone; Large size waste materials can be mined; According to the size requirements of stone processing, we can cut blocks of different sizes to meet the needs of different customers.



Marble wire cutting machine Parameters



Product model

DWS-37

DWS-55

DWS-75

Main motor power (kW)

37

55

75

Total motor power (kW)

40

58

79

Headpiece overturning

±180°

±180°

±180°

Linear velocity of main flywheel (m/s)

0~40

0~40

0~40

Maximum cut spacing (mm)

1750

1950

2100

Rail length (m)

2m*3 sections

2m*5 sections

2m*5 sections

Rail weight/section (kg)

80

83

85

Weight of main unit (kg)

2515

2820

3650

Machine dimensions (L*W*H) (mm)

2100*1410*1500

2100*1550*1650

2210*1700*1750

Machine dimensions (L*W2*H2) (mm)

2100*1300*1680

2100*1480*1780

2210*1550*1950
