This page focuses on the 55 kW DWS-55 quarry wire saw. Its distinctive old content is the control package: inverter and PLC control, real-time current tracking, multilingual display, stored cutting data and several optional operating configurations.
DWS-55 within the three-model table
| Main motor | 55 kW |
|---|---|
| Total motor power | 58 kW |
| Maximum cut spacing | 1950 mm |
| Main-unit weight | 2820 kg |
| Rail package | Five 2 m sections; 83 kg per section |
The full table also lists ±180° head overturning and a 0–40 m/s main-flywheel range. DWS-37 and DWS-75 are comparison rows, not alternate titles for this article.
Specify the control options in writing
The original notes describe digital communication, constant-tension current tracking, automatic control and data storage. They also state that functional options are available for different quarries. A quotation should identify the inverter, PLC, operator interface, remote functions and data features actually supplied; the general page wording does not show which options are standard.
Information for a 55 kW quarry proposal
- Stone sample, bench drawing and maximum cut plane
- Available voltage and power at the working face
- Wire, pulley and water arrangement
- Required rail and control options
- Trial sheet for tension behaviour, cut area, time and wire use
Ask the technical offer to connect every selected option to the DWS-55 equipment list.

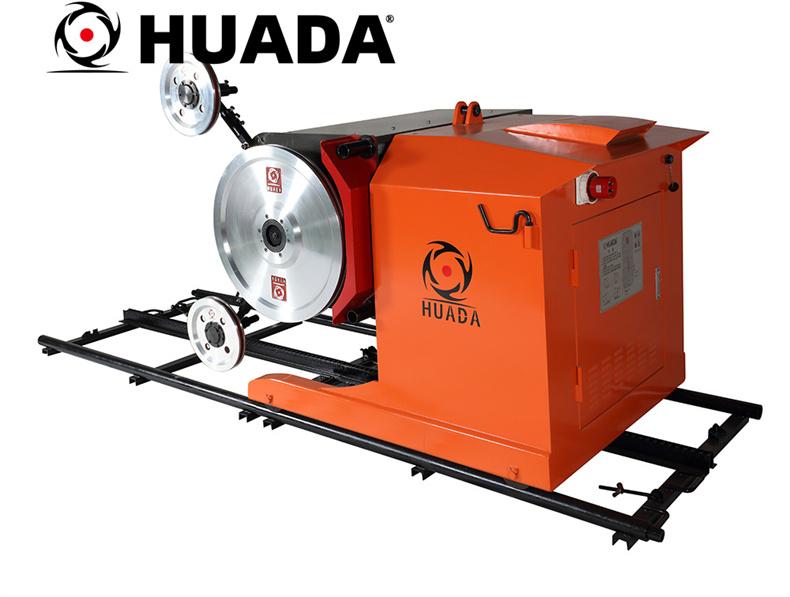

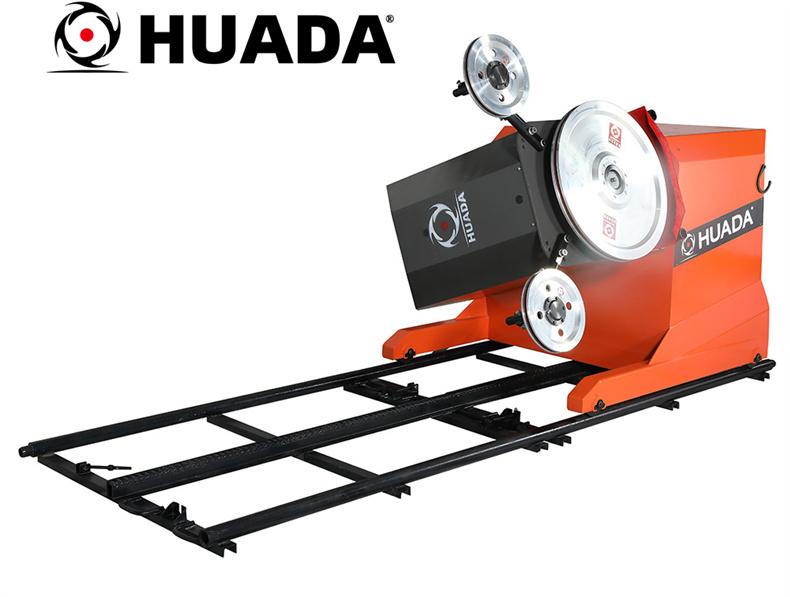

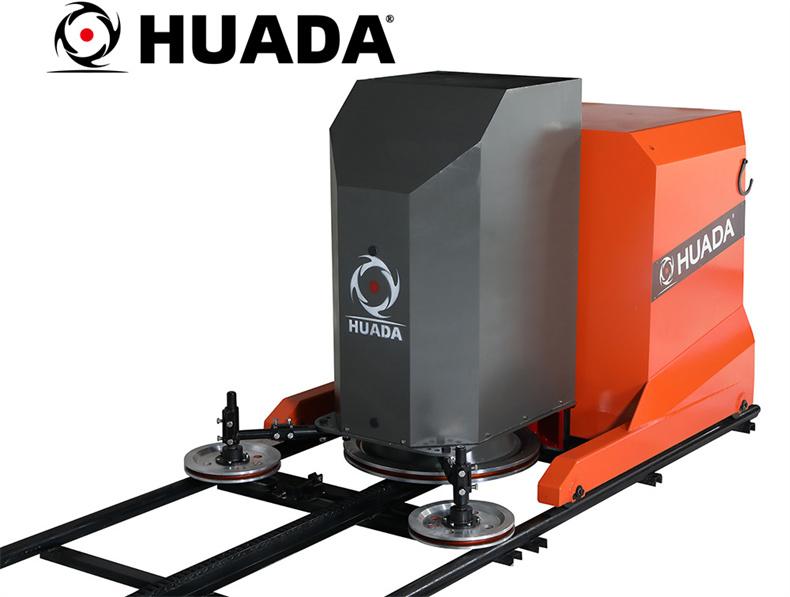

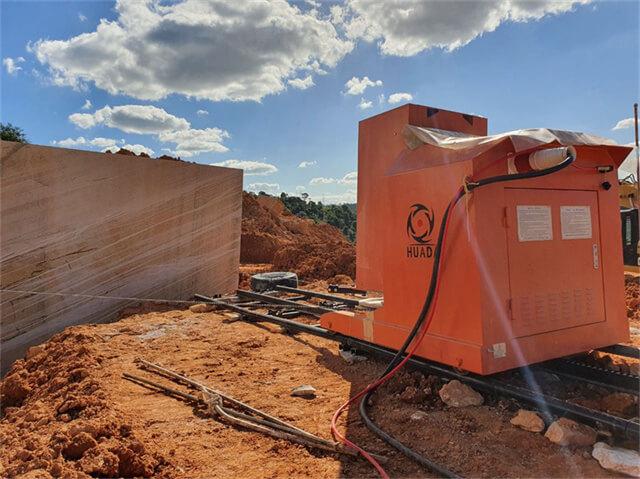

Original product images
