This is Huada's combined stone-quarry diamond wire entry. Its old parameter field contains separate marble and granite groups, so the first decision is the stone family—not one universal wire for every quarry.
Marble constructions in the saved table

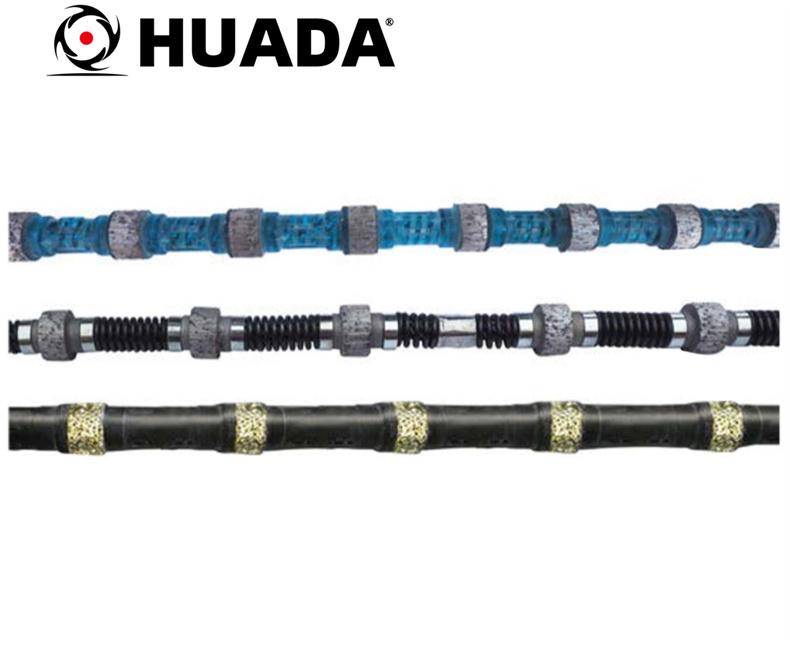

The marble section lists sintered, dry-cutting and electroplated wire. Diameters run from Φ10.5 to Φ11.5 mm, with 28/31/33 or 33/37/40 beads per metre depending on the entry. Spring, rubber-plus-spring and plastic-plus-spring assemblies appear in the source. The applicable construction depends on the marble and quarry method.
Granite and quartzite use another range

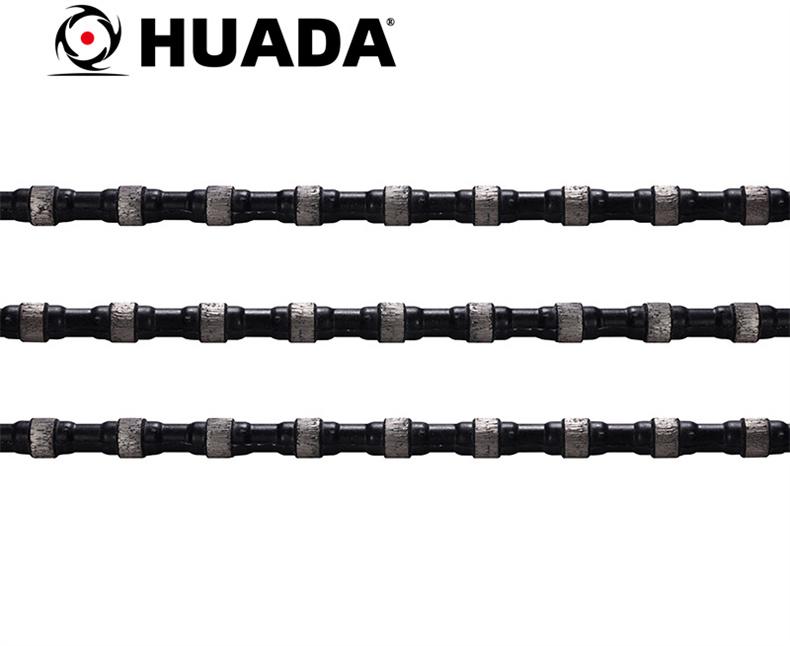

The granite section lists Φ11.0, Φ11.5, Φ12.0 and Φ12.5 mm, 38/40 beads per metre and rubber or rubber-plus-spring assembly. Its wire-speed ranges step from 30–45 m/s for soft stone to 20–35 m/s for hard granite or quartzite. Cutting and production columns also differ by hardness and machine power.
Do not order from the combined title alone
- Provide a stone sample and quarry-cut record
- Name the wire-saw model and 37 kW or 55/75 kW power group
- State wet or proposed dry-cutting conditions
- Confirm diameter, beads per metre and assembly
- Agree a trial measuring area, time and wire consumption
Ask the quotation to reproduce the selected marble or granite row so the two distinct product families do not become mixed during final supply.

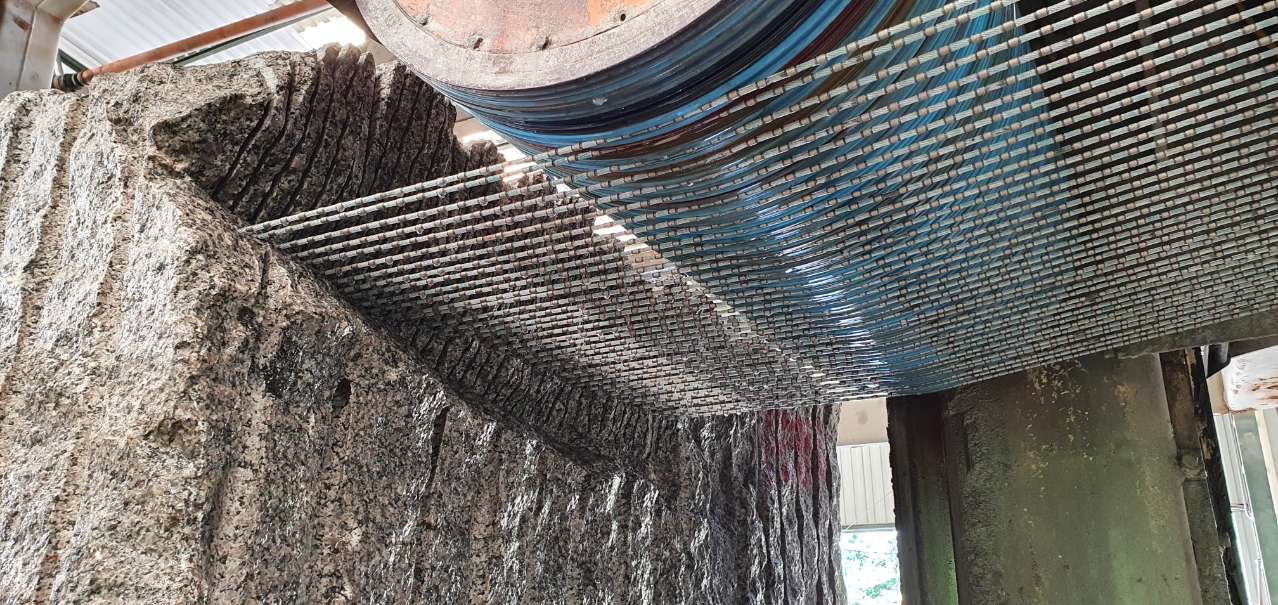

Original product images
