The Metal Braid Grinding Block entry is for grinding and polishing quartz engineered-stone slabs on automatic polishing machines. Its old fields combine the product title with “metal and resin diamond Fickert,” so the supplied construction must be clarified in the offer.
Code, length and grit entries
| Code | HD FBS |
|---|---|
| Listed lengths | 140 / 170 mm |
| Grits shown | 30#, 40#, 50#, 60#, 80#, 100#, 120#, 140#, 800#, 170#, 1200# and 200# |
The saved grit order is irregular: 800# appears before 170#, and 1200# before 200#. Treat it as an availability list and ask Huada to return the intended process order in writing.
Define the quartz slab and grinding stage
Provide the engineered-stone composition or product reference, slab condition and automatic line. Identify whether the required item is metal, resin or a planned combination, because the old narrative mentions both. Match the 140 or 170 mm length to the installed holder before agreeing the grit sequence.
Trial observations
- Holder length and exact HD FBS construction
- Quartz engineered-stone slab reference
- Approved grit order by machine position
- Water and line settings used
- Stock removal, scratch pattern and surface consistency
Retain the corrected sequence with the order so the next batch does not inherit the old table's display order. Mark stored tools by construction, length and grit, and keep the accepted quartz surface photograph with the line sheet. Note the machine position on every trial sample.

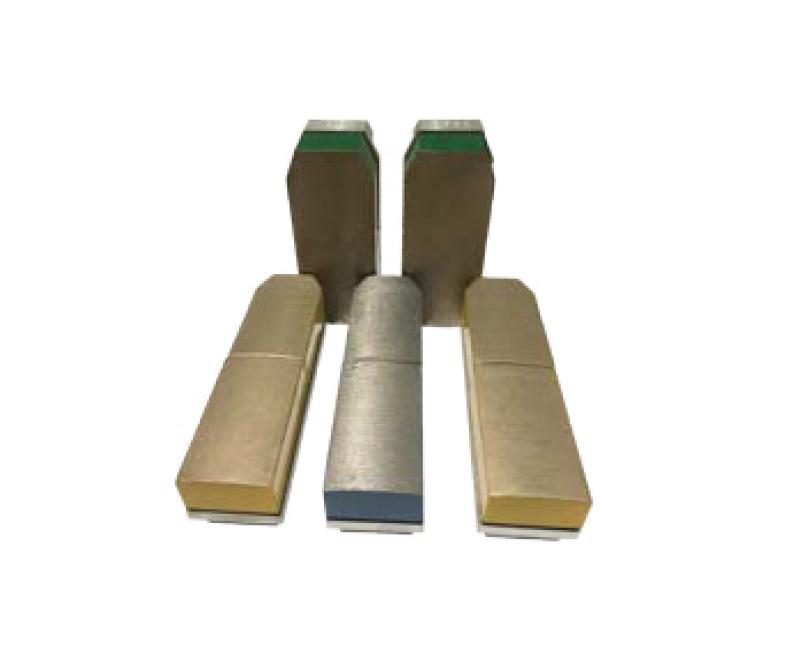

Original product images
