The CSM Series chain saw is listed for dry cutting marble and soft stone in both horizontal and vertical directions. Three models differ chiefly in maximum cut depth, power, weight and machine length.
CSM-3200, CSM-4500 and CSM-5600
| Model | Maximum cut depth | Total power | Weight |
|---|---|---|---|
| CSM-3200 | 3200 mm | 53 kW | 6800 kg |
| CSM-4500 | 4500 mm | 65 kW | 9200 kg |
| CSM-5600 | 5600 mm | 65 kW | 9900 kg |
All rows show a listed cutting efficiency of 3–7 m²/h. Treat this as source data to be checked against the actual marble and cut direction.
Control and monitoring options
The page records PLC control, a hydraulic system that adjusts parameters with stone hardness, an optional IoT function for remote data collection/monitoring and optional wireless remote control. Ask the equipment list to distinguish standard control from selected options. Dry cutting also needs a site dust-control and exclusion plan.
Marble quarry commissioning
- Marble, cut direction and required depth
- Selected model and working clearance
- Chain/tooling and dry-cutting controls
- IoT or wireless functions included
- Cut geometry, time, surface and chain-condition record
Test horizontal and vertical operation only where both directions are included in the accepted scope. Record dust-control performance and inspect the chain after a representative interval. Save remote-monitoring data with the same stone and cut record when that option is supplied.

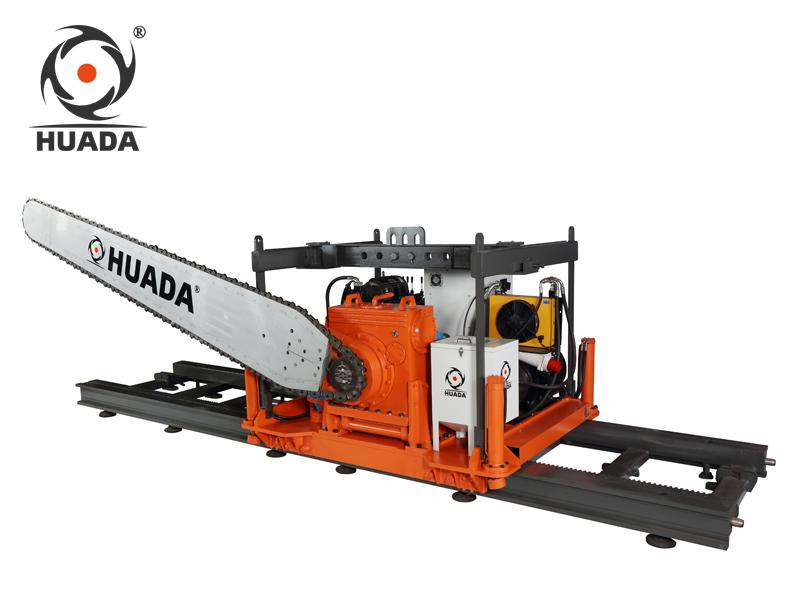

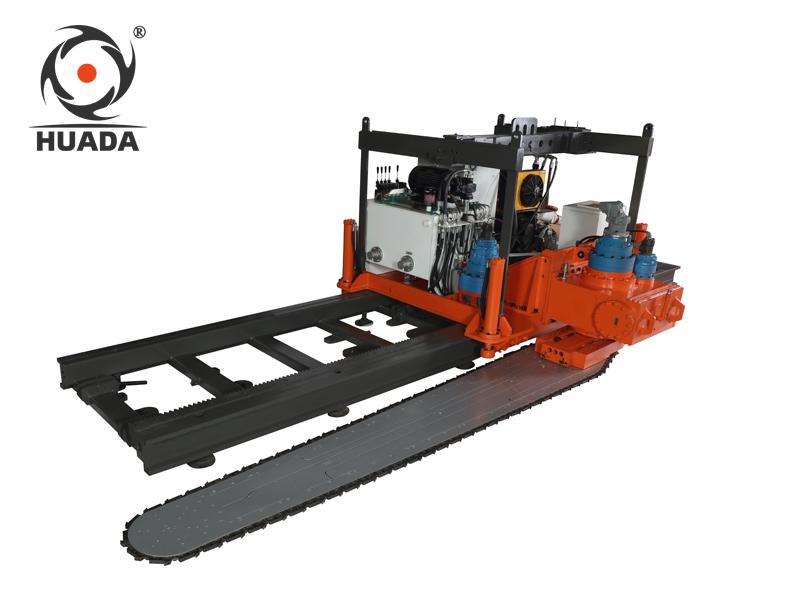

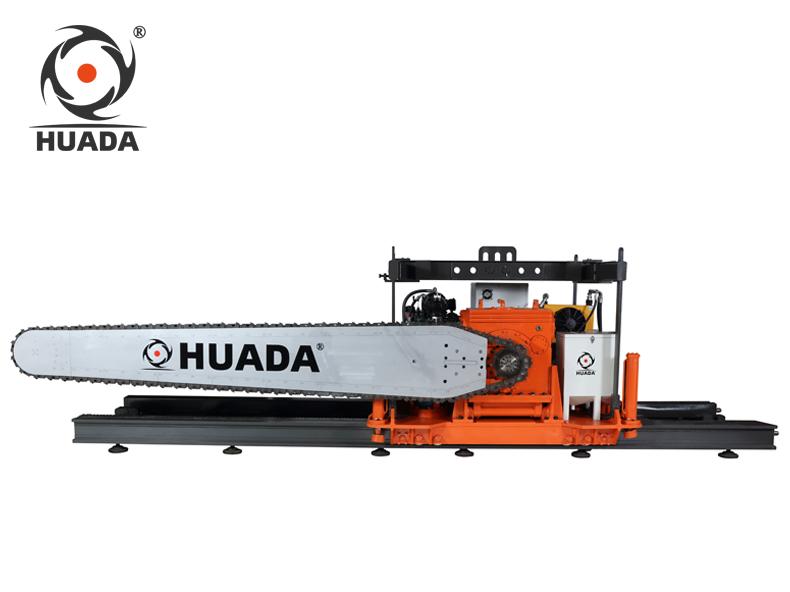

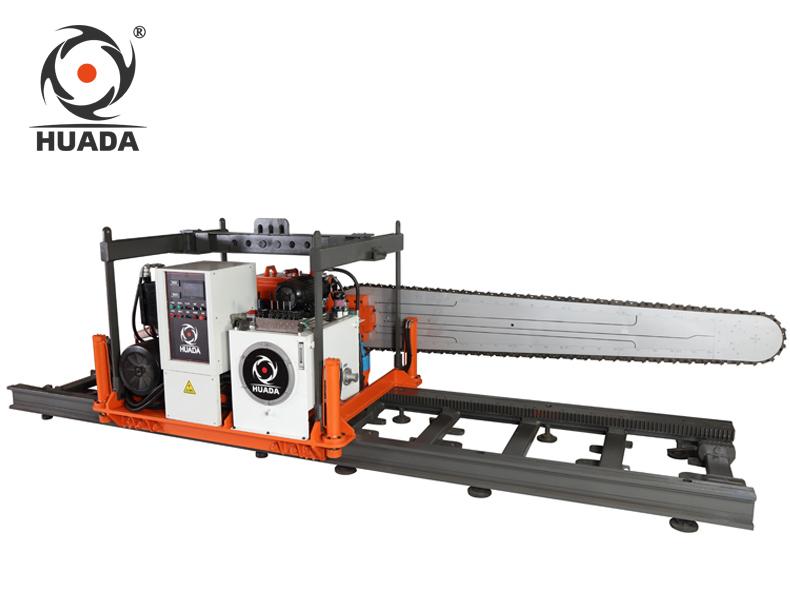

Original product images
