This chain-saw page is titled for granite rock cutting, while its product-name field also lists marble, granite, rock and soft stone for dry horizontal and vertical cutting. That broad material claim needs confirmation for the actual chain and machine setup.
Three CSM depth classes
| Model | Maximum depth | Total power | Recorded size |
|---|---|---|---|
| CSM-3200 | 3200 mm | 53 kW | 3100 × 1970 × 1880 |
| CSM-4500 | 4500 mm | 65 kW | 4000 × 2100 × 1880 |
| CSM-5600 | 5600 mm | 65 kW | 4000 × 2100 × 1880 |
Every row carries a 3–7 m²/h source range. The CSM-4500 and CSM-5600 weights are 9200 and 9900 kg.
Clarify granite suitability before ordering
The old features include PLC control, hydraulic adjustment by stone hardness, optional IoT monitoring and optional wireless remote control. Ask Huada to state the approved stone, chain/tooling, dry-cutting conditions and direction for the exact model. Do not extend a soft-stone chain specification to granite from the broad name alone.
Rock-cutter enquiry
- Stone sample and hardness/cutting record
- Horizontal or vertical cut and required depth
- Selected CSM model, chain and drive scope
- Dust control, access and handling plan
- IoT/remote options and representative trial
The quotation should name the approved chain and material range for the selected CSM model. During the test, record whether hydraulic adjustment responds to the rock change and inspect cut geometry, chain condition and machine alarms before accepting routine granite work.

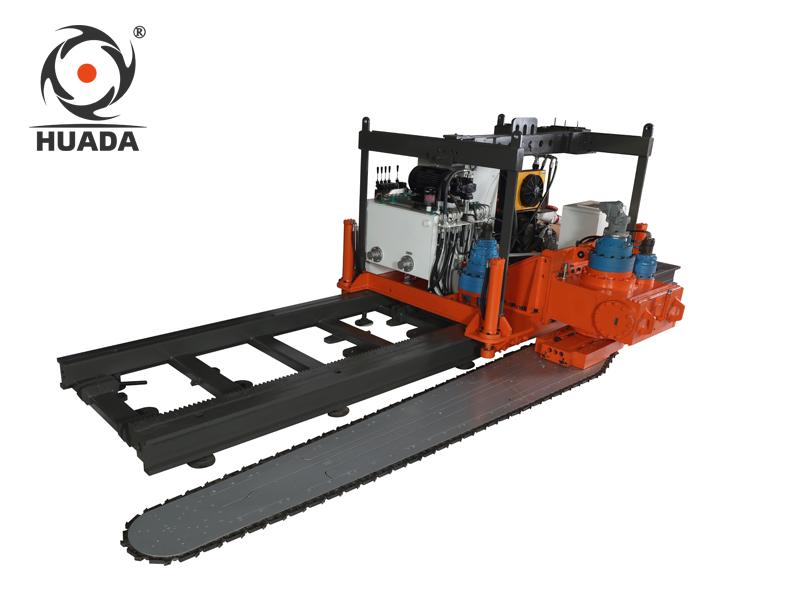

Original product images
