This press-down swinging multi-wire saw combines vertical loading with controlled wire-path motion. Although the title names natural-stone blocks, the saved description focuses on silicon, quartz, sapphire, ceramics and thin technical substrates.
Press-down frame plus swinging path
The source says the high-rigidity press-down frame maintains wire contact, while a dynamic swinging mechanism controls trajectory and reduces deflection. Servo-feedback tensioning is described as responding to live fluctuations. These three functions should be commissioned together: frame movement, swing profile and tension response can each affect flatness, kerf and wire breakage.
The integrated cutting platform is described as micron-level and thermally stabilized, with a statement about substrates below 0.1 mm. That claim is not evidence for natural-stone slab output; request a material-specific trial.
Application claim needs reconciliation
The old body positions the machine for semiconductor, photovoltaic and optical work and says it is CE-certified through European-grade engineering. The product title instead targets natural-stone block cutting. A natural-stone offer should therefore identify the stone, block, wire construction, slab target and surface acceptance, while a technical-material offer should use the appropriate substrate and dimensional checks. Ask for the applicable conformity documentation rather than relying on the page wording alone.
Shared capacity table, distinct mechanism
The saved specifications list a 11000 × 7000 × 6500 mm envelope, 3700 mm cutting length, 2200 mm cutting height and width, four 64 kW main motors, 300 kW installed power, 35 m/s linear speed, 0–420 mm/min rising speed and a 3500 × 2200 mm block dimension.
- Natural stone or technical substrate sample
- Press-down force, swing path and wire layout
- Servo tension response and alarm record
- Foundation, power, access and safety scope
- Thickness, flatness, surface and kerf results

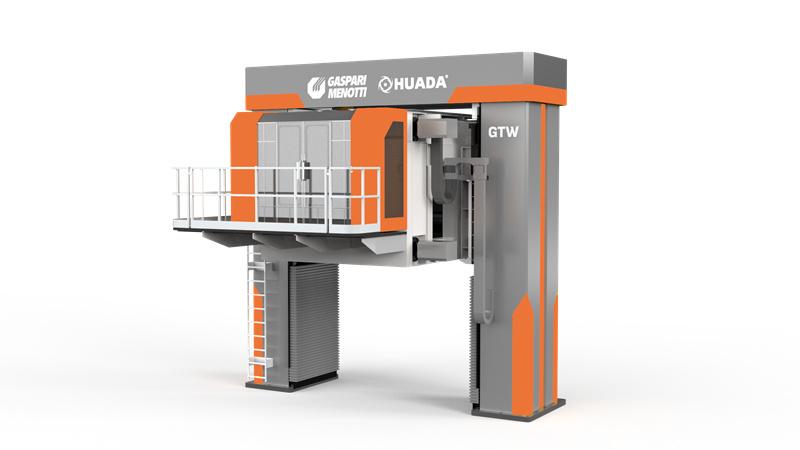

Original product images
