The high-pressure water bag is used to push quarry stone after a diamond-wire cut has been completed. Its old page highlights a 2 mm profile for insertion into the cut and lists three bag sizes with different thrust figures.
Three sizes in the product table
| Width × length | Listed thrust force |
|---|---|
| 0.5 × 0.5 m | 75 tons |
| 0.5 × 1.0 m | 130 tons |
| 1.0 × 1.0 m | 220 tons |
The source also states that bags can be used individually or in combination and that combined thrust can exceed 1000 tons. Treat those figures as manufacturer data; the engineered pushing plan must account for the actual stone mass, support and cut geometry.
Prepare the cut and pushing plan
Confirm that the completed wire-saw cut provides the insertion space required for the selected bag. Map bag positions, water supply, hoses and the direction in which the stone is intended to move. The webpage does not replace a site-specific stability and exclusion plan.
Information for a water-bag quotation
- Stone dimensions, estimated mass and bench drawing
- Cut width, depth and bag insertion points
- Selected bag sizes and proposed combination
- Water-pressure equipment, hoses and control scope
- Inspection, operating and replacement instructions required
Ask Huada to identify every component included with the bag system rather than ordering the bag dimensions alone.

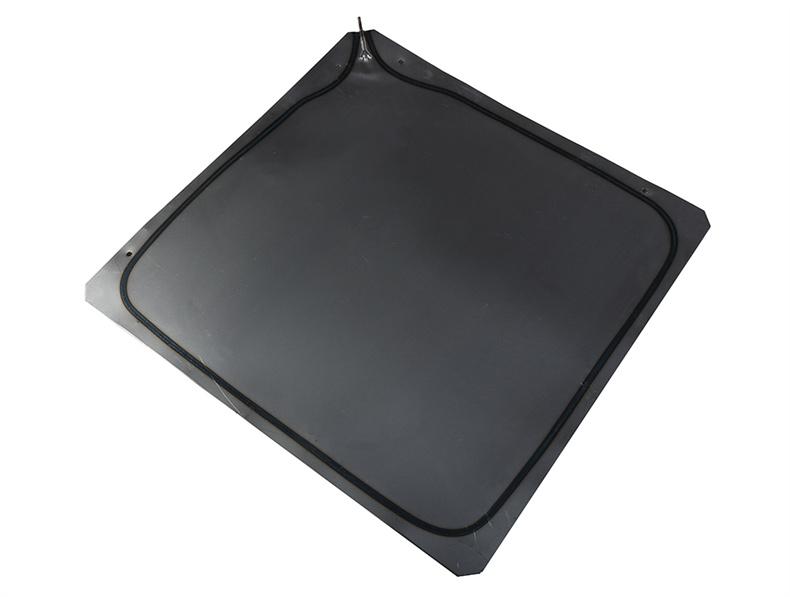

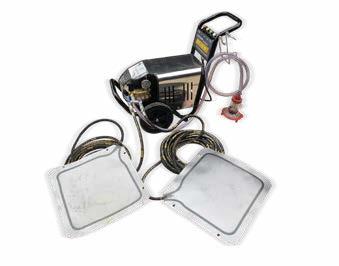

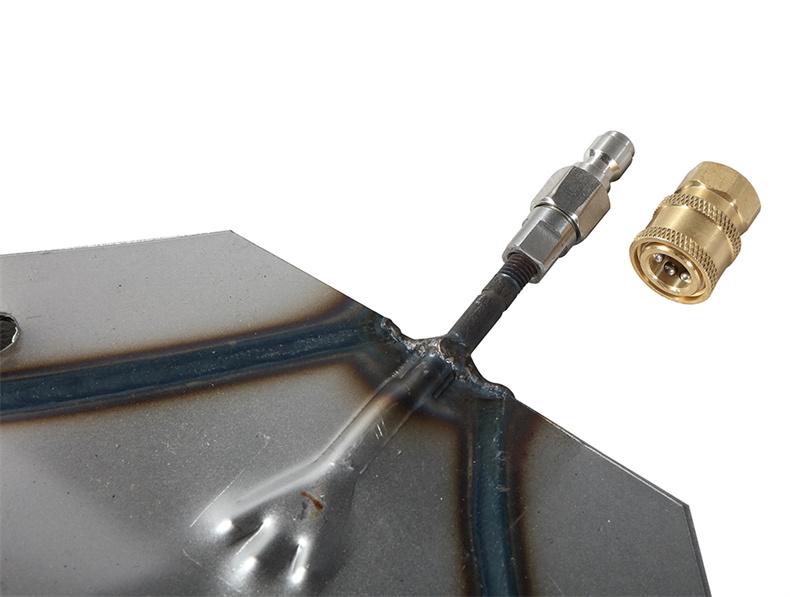

Original product images
