DWS-75 is the 75 kW stone wire saw on this page. The old narrative emphasises full automatic control, stored efficiency data, protection functions and automatic shutdown if the diamond wire breaks.
The largest row in the shared DWS table
| Main motor | 75 kW |
|---|---|
| Total motor power | 79 kW |
| Maximum cut spacing | 2100 mm |
| Main-unit weight | 3650 kg |
| Machine dimensions | 2210 × 1700 × 1750 mm |
The source also records five 2 m rail sections, 85 kg per section, ±180° head overturning and 0–40 m/s flywheel speed. Confirm transport orientation and lifting around the larger unit.
Protection and shutdown scope
The page mentions a standby speed-regulation interface, complete protection and shutdown when the rope breaks. Ask the electrical list and operating manual to identify the sensors, stop sequence and checks required before restart. These safety statements should be verified on the delivered control system during commissioning.
Record each tested alarm and the machine response. Operators should know where the wire can move after a stop and who may approve inspection or safe machine restart.
DWS-75 commissioning record
- Confirm supply, controls, rails, pulleys and wire.
- Inspect foundations, lifting access and working clearance.
- Test protective stops under the agreed procedure.
- Run a representative stone cut with recorded data.
- Save alarm, cut and wire-condition records for operator handover.

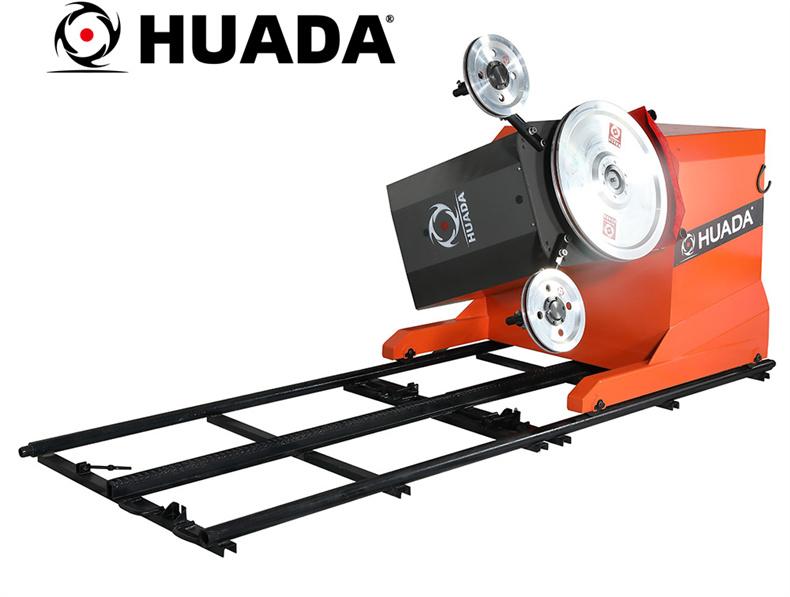

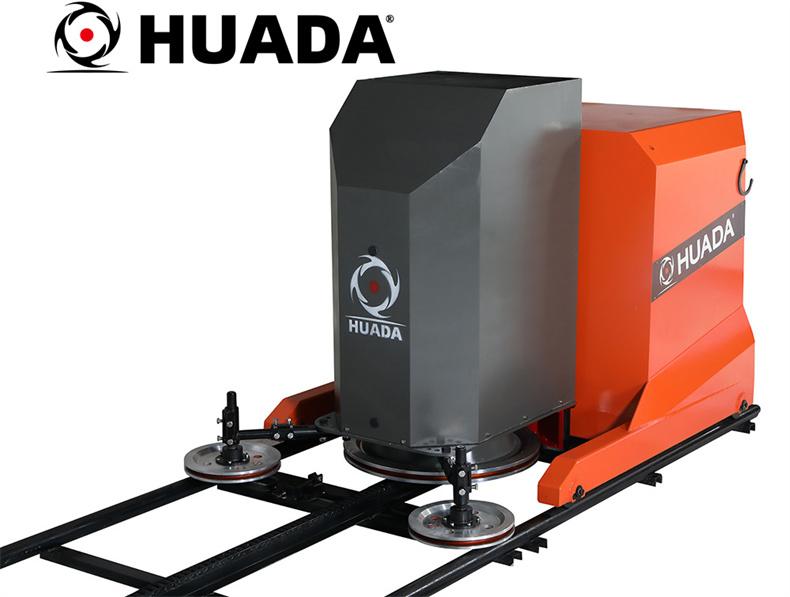

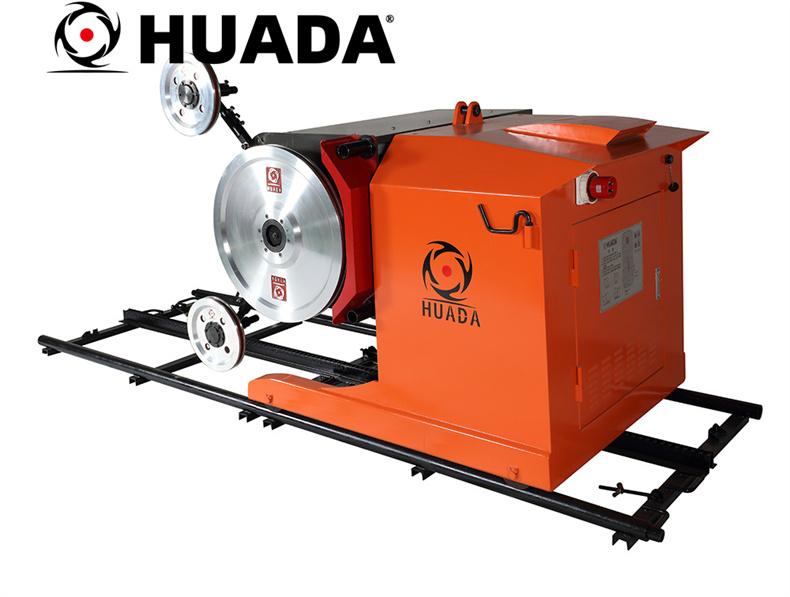

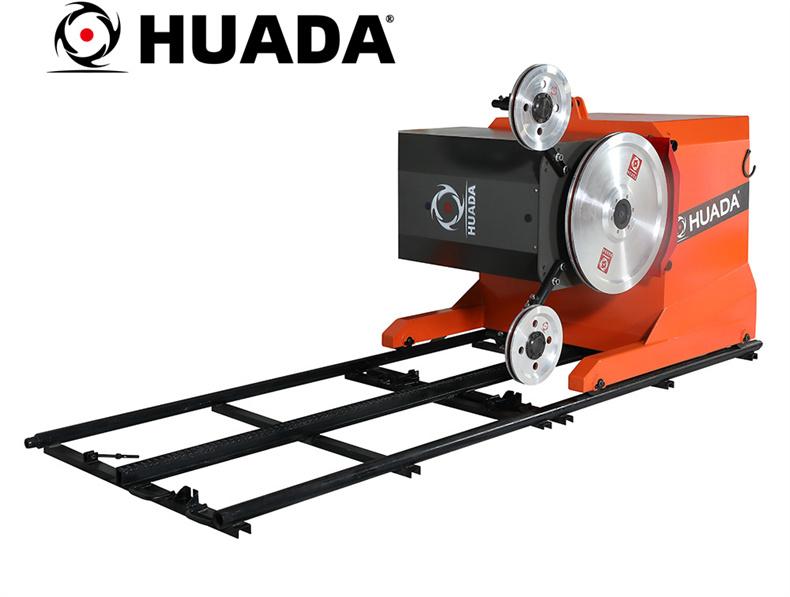

Original product images
