This 350 mm bridge-saw blade is listed for engineered materials including quartz, sintered surfaces and ceramic products such as Laminam, Neolith, Dekton and Lapitec. The old table distinguishes two segment widths while keeping the same diameter and count.
Two 350 mm rows to distinguish
| Diameter | Segment length | Segment width | Segment height | Segments | Bore |
|---|---|---|---|---|---|
| 350 mm | 40.8/38.5 mm | 2.4 mm | 8.0/10 mm | 27 | 50/60 mm |
| 350 mm | 40.8/38.5 mm | 3.2 mm | 8.0/10 mm | 27 | 50/60 mm |
Both rows are marked for silent and regular cores. The width should be confirmed from the material, machine and requested cut rather than treated as an interchangeable option.
Name the engineered material precisely
“Engineered stone” covers more than one product in the old description. Provide the brand or material type, slab thickness, mesh or backing if present, and the required edge condition. Also identify the bridge saw, bore and flange arrangement. This gives Huada the information needed to select between the two listed rows.
Controlled slab test
- Verify diameter, bore, core type and 2.4 or 3.2 mm segment width
- Record slab material, thickness and support
- Confirm water delivery and machine settings
- Inspect chipping on entry, exit and edge
- Retain the blade reference with the accepted sample record
Use the same material batch for the comparison where possible. A change in backing or slab support should be noted with the result.

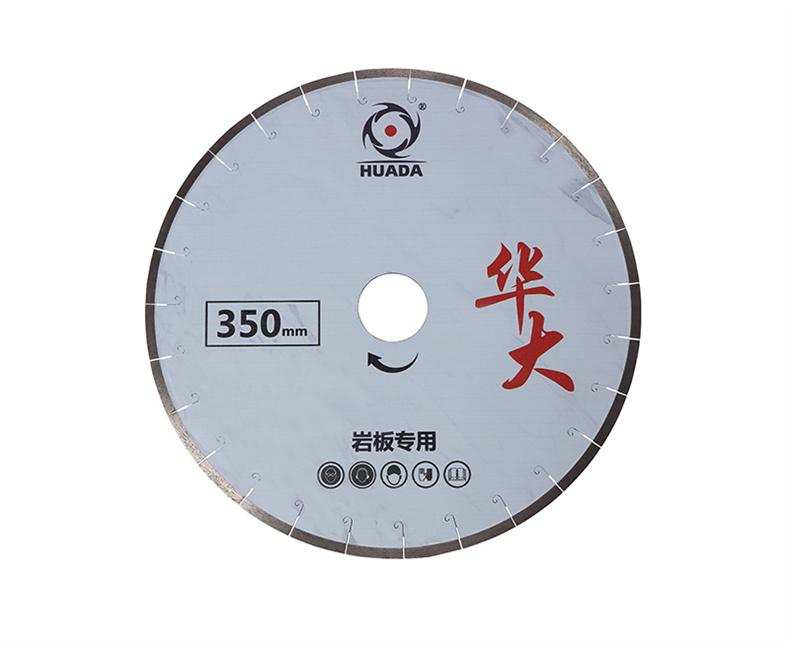

Original product images
