Diamond Resin Brax code HD FAS is listed for grinding and polishing quartz engineered-stone slabs. The source offers 140 and 170 mm lengths and a resin-oriented grit range extending to 6000#.
Published HD FAS range
The saved list contains 120#, 180#, 220#, 300#, 400#, 600#, 800#, 1000#, 1200#, 1500#, 1800#, 3500# and 6000#. The two available lengths are 140 and 170 mm. State both length and grit on every order line.
Use it after the correct preparation stage
The page names both grinding and polishing, but its listed range begins at 120#. Send the quartz slab reference and the surface condition entering HD FAS positions. Huada should confirm the transition from earlier tools and the selected sequence for the requested finish rather than treating the whole list as mandatory.
Check the automatic line's holder before deciding between 140 and 170 mm; the two lengths are not interchangeable merely because they share a code.
Process record for resin Brax
- Record slab composition and incoming finish.
- Identify length, grit and machine position.
- Keep water and line conditions stable during comparison.
- Inspect scratch removal and surface uniformity between stages.
- Save the accepted sequence with the finished-slab sample.

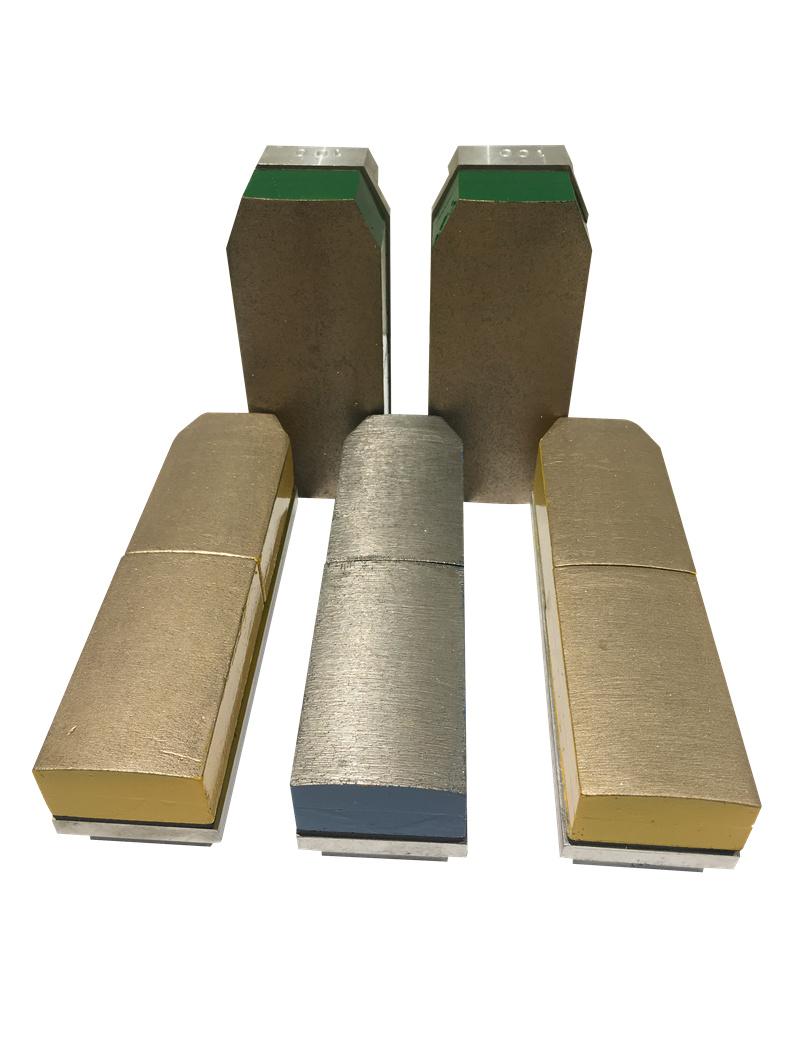

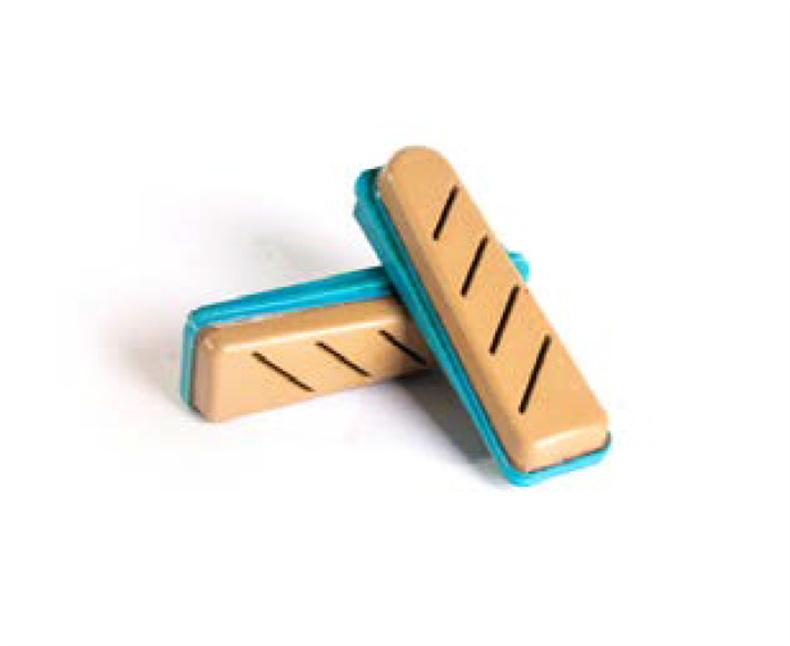

Original product images
