HD FG resin diamond Fickert is listed in a 140 mm length for polishing slabs on automatic polishing machines. Unlike the Lux entry, this page provides a defined grit progression from 60# to 3500#.
Grits recorded for the resin Fickert
The source lists 60#, 80#, 100#, 120#, 220#, 300#, 400#, 600#, 800#, 1000#, 1200#, 1800# and 3500#. Select and order the required stages explicitly. The list is an availability range; it does not require every line or slab to run every grit.
Use the incoming surface to set the starting point
Identify the slab material and the finish left by the previous abrasive. A trial should follow the planned head positions while keeping the machine and water conditions recorded. Examine the surface after each important transition so that a scratch can be traced to the stage that introduced it.
Because HD FG is also displayed on the Lux page, state “resin diamond Fickert,” the 140 mm length and each grit on the purchase order.
Production handover
- Automatic line and Fickert holder
- Slab material and condition before polishing
- Selected grits and quantity by position
- Recorded water and machine conditions
- Surface sample or photographs at acceptance

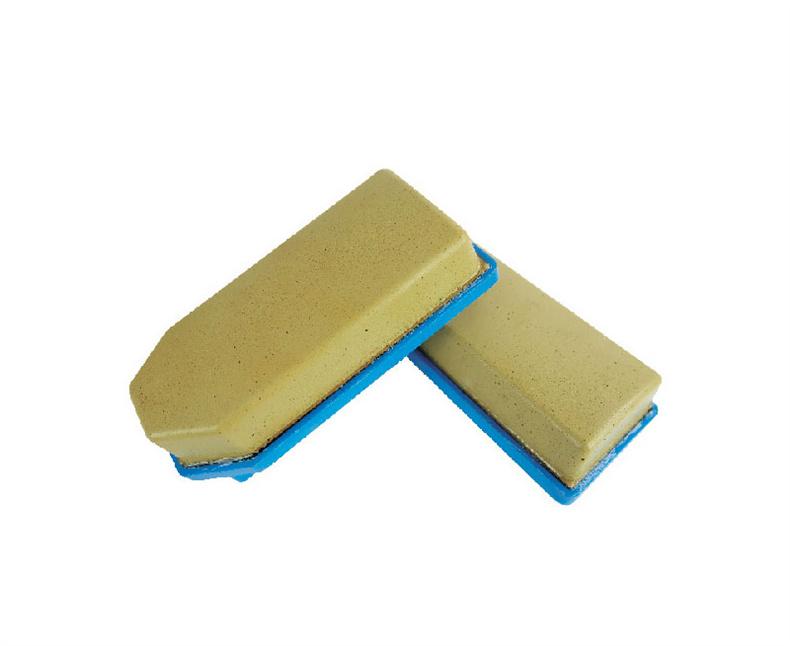

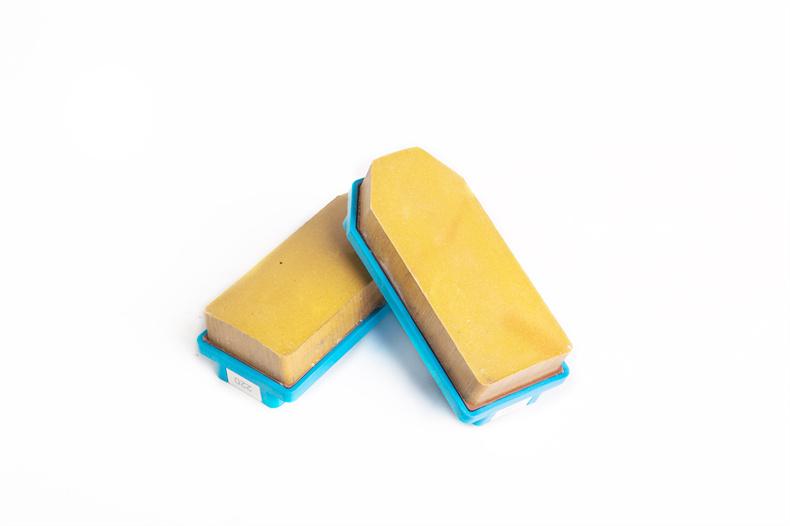

Original product images
