stone quarry cutting machine mining technology

Author:Huada Quarrying Machine FROM:Stone quarry machine manufacturer TIME:2023-01-06

stone quarry cutting machine's mining process is: stripping - digging trenches - mining sawing - shipment.

(1) Stripping


Use stone quarry cutting machine to cut the weathered layer covering the upper part of the stone ore bed horizontally, and then drill the hole. The depth of the hole is about 20~30cm from the cut groove, and then carry out blasting. Cracks due to blasting. The broken stones are transported out by car or other transport machinery.


(2) Digging a trench


Before stone quarry cutting machine mines the saw stone, usually along the working line of the mining area from one end to the other end, according to the requirements of the stone saw machine used, a longitudinal trench with a certain depth and width is excavated, and the bottom of the trench is laid with rails completely parallel to the working surface. The two rails should be on the same level, and there should be no excessive error in height, because this will deform the sawn stones, the size will be uneven, it will also increase the wear of stone quarry cutting machine, and it will easily overload the machine. Some disc stone sawing machines also require excavation of transverse trenches.

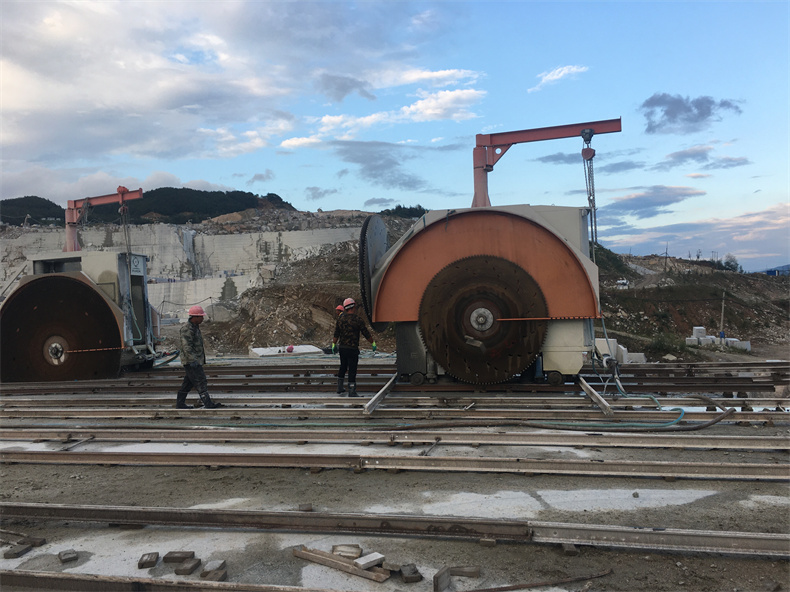

stone quarry cutting machine


(3) stone quarry cutting machine mining sawing

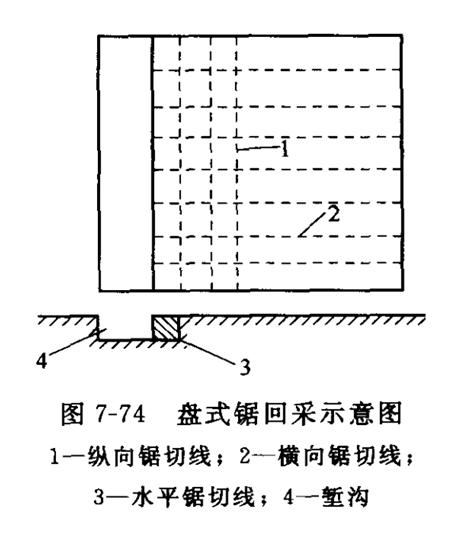

Because the specifications of the stones quarried by stone quarry cutting machine are consistent, the sawing methods are close to the same. The sawing sequence is as follows: firstly, the rock layer is cut horizontally from the starting point to the end point of the working line according to the specified size, and the slits are perpendicular to the working line, and the slits are equal and parallel. After the horizontal sawing is completed, the vertical and horizontal sawing is carried out at the same time, and the block stone is finally separated from the original rock. When the stone sawing machine moves from the starting point to the end point of the working line, the separated rocks are transported away, and then the stone sawing machine returns to the starting point, moves a certain cutting size into the working line, and then cuts from the starting point to the end point. Repeat this cycle until the same layer of stone within the mining area is sawed, as shown in Figure 7-74.

 stone quarry machine




(4) Shipping


The sawn blocks are hoisted by mast cranes, truck cranes, crawler cranes or cable cranes to trucks for transport.

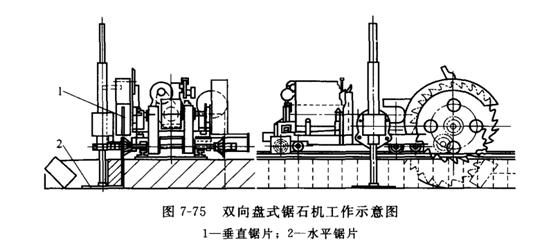

At present, the most common application is stone quarry cutting machine for unidirectional (vertical) cutting, and there are two types of saw blades and double saw blades. In addition, there is a two-way disc stone saw machine for mining soft rock. The machine is equipped with a vertical saw blade and a horizontal saw blade, which can perform horizontal and vertical sawing at the same time, as shown in Figure 7-75.


stone cutting machine

After the stone ore body is cut horizontally, it can be cut radially and horizontally to obtain qualified stone.

Applying stone quarry cutting machine to mine stone mines can significantly improve the utilization rate of stone natural resources. Using the sawing mining method is like cutting tofu blocks with a knife, the waste rate can reach more than 90%, and the stone is not broken, the overall quality of the stone is greatly improved, and the gravel, smoke, and dust are less, which is beneficial to environmental protection. The traditional mining method uses thermal cutting combined with explosive blasting, and the finished product rate is generally 30% to 50%. At the same time, a large amount of smoke, dust and gravel are generated, causing environmental pollution.
