The DWS-37M, DWS-55M and DWS-75M machines are listed for steel and concrete wire cutting with permanent-magnet technology. Their controls combine an inverter, PLC, real-time current tracking, multilingual display and stored operating data.
Control functions behind the cutting process
The old description says the control system maintains diamond-wire tension and that cutting parameters were refined through quarry practice over 20 years. It also names a built-in speed interface, protection functions, digital structural and ventilation analysis, and optional functions for different projects. The supplied equipment list should identify which data, interface and protection items are included rather than treating every option as standard.
Three motor and travel packages
| Model | Main / total power | Maximum cutting distance | Main-unit weight |
|---|---|---|---|
| DWS-37M | 37 / 40 kW | 1750 mm | 2515 kg |
| DWS-55M | 55 / 58 kW | 1950 mm | 2820 kg |
| DWS-75M | 75 / 79 kW | 2100 mm | 3650 kg |
All models list ±180° head tilting and 0–40 m/s main-handwheel linear speed. Rail packages and machine dimensions differ, so access and setup space must be checked against the selected row.
Steel-concrete project sheet
- Concrete thickness, reinforcement and embedded steel
- Cut sequence, wire path and pulley anchors
- Selected DWS model, rails and machine position
- Power, cooling water and control options
- Tension, cut time and wire-condition record
The page describes diamond wire as an effective and economical method of removing concrete but provides no project comparison. Verify cut stability and wire consumption on the actual structure, then store the machine data with the matching wire and material record.

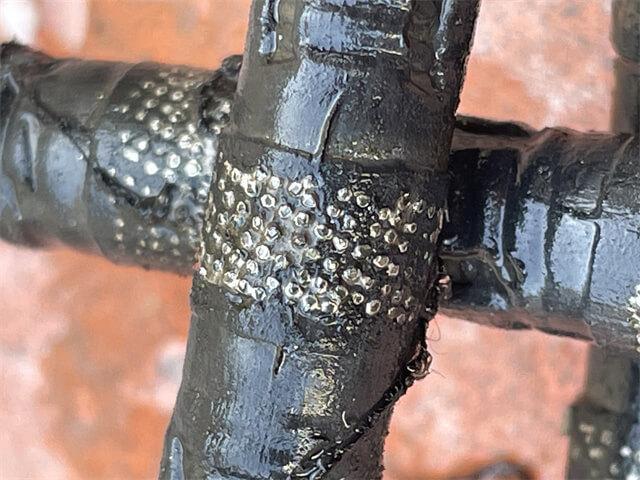

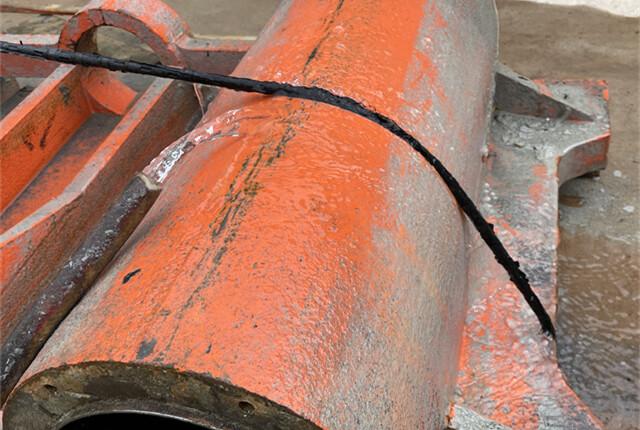

Original product images
