Precautions for installation of Huada diamond wire saw cutting machine

Author:Huada Quarrying Machine FROM:Stone quarry machine manufacturer TIME:2021-09-15

Huada diamond wire saw cutting machine has good performance, and the correct installation of equipment is an important prerequisite for mining stone mines. Here are the precautions for the installation of Huada diamond wire saw cutting machine

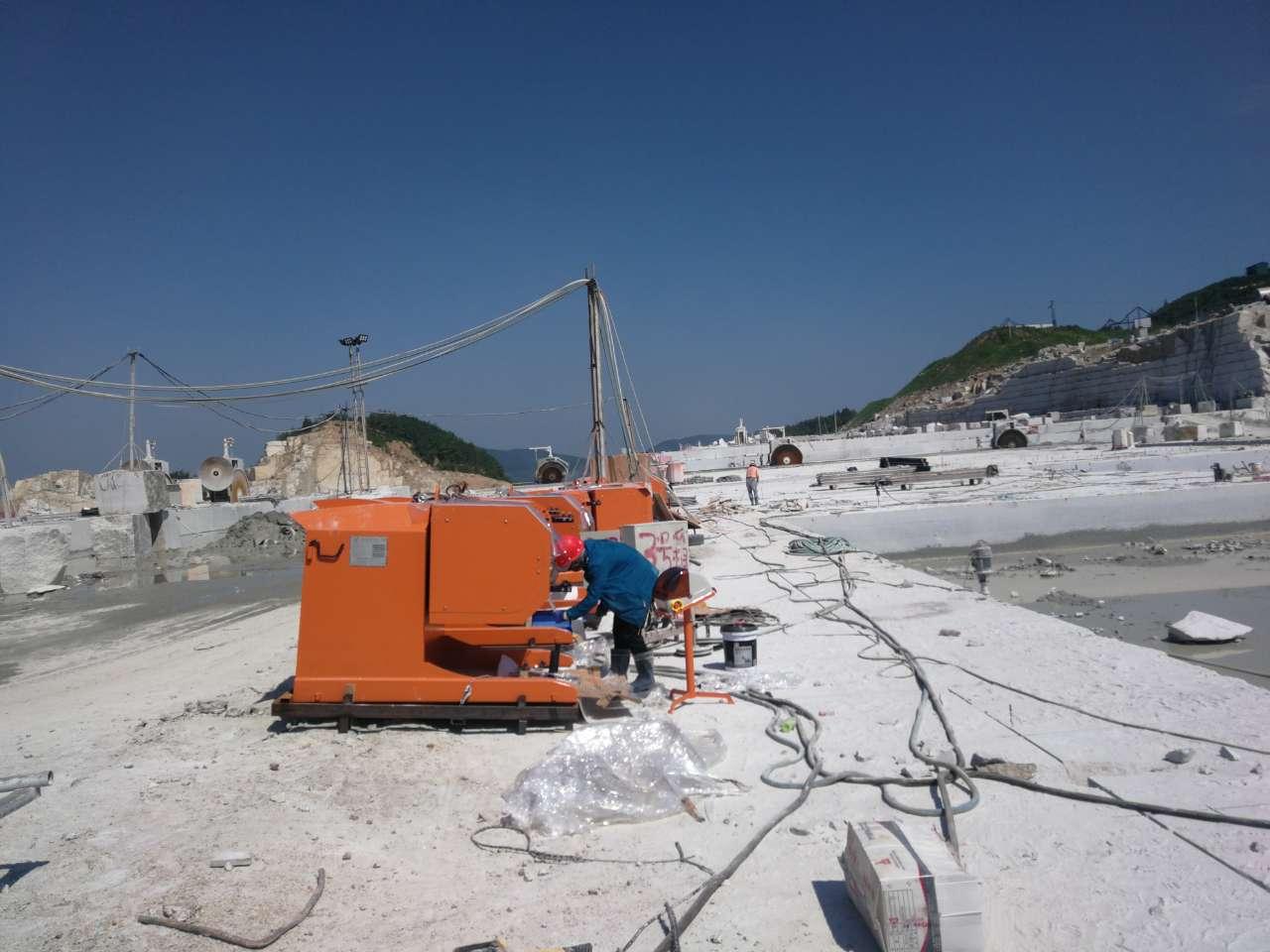

 diamond wire saw cutting machine.jpg


1、 Precautions for installation of Huada diamond wire saw cutting machine - hoisting


The hoisting and movement of diamond wire saw must be carried out by professional trained personnel. Personnel are not allowed to stand under the equipment during hoisting; In order to ensure safe hoisting of equipment, steel wire rope with sufficient strength shall be used, and the hoisting position of equipment shall be in strict accordance with the marks on the machine.

When the equipment is placed on the ground alone (i.e. the equipment is not placed on the guide rail), wooden strips shall be placed under the equipment to prevent the walking structure at the bottom of the equipment from being crushed.

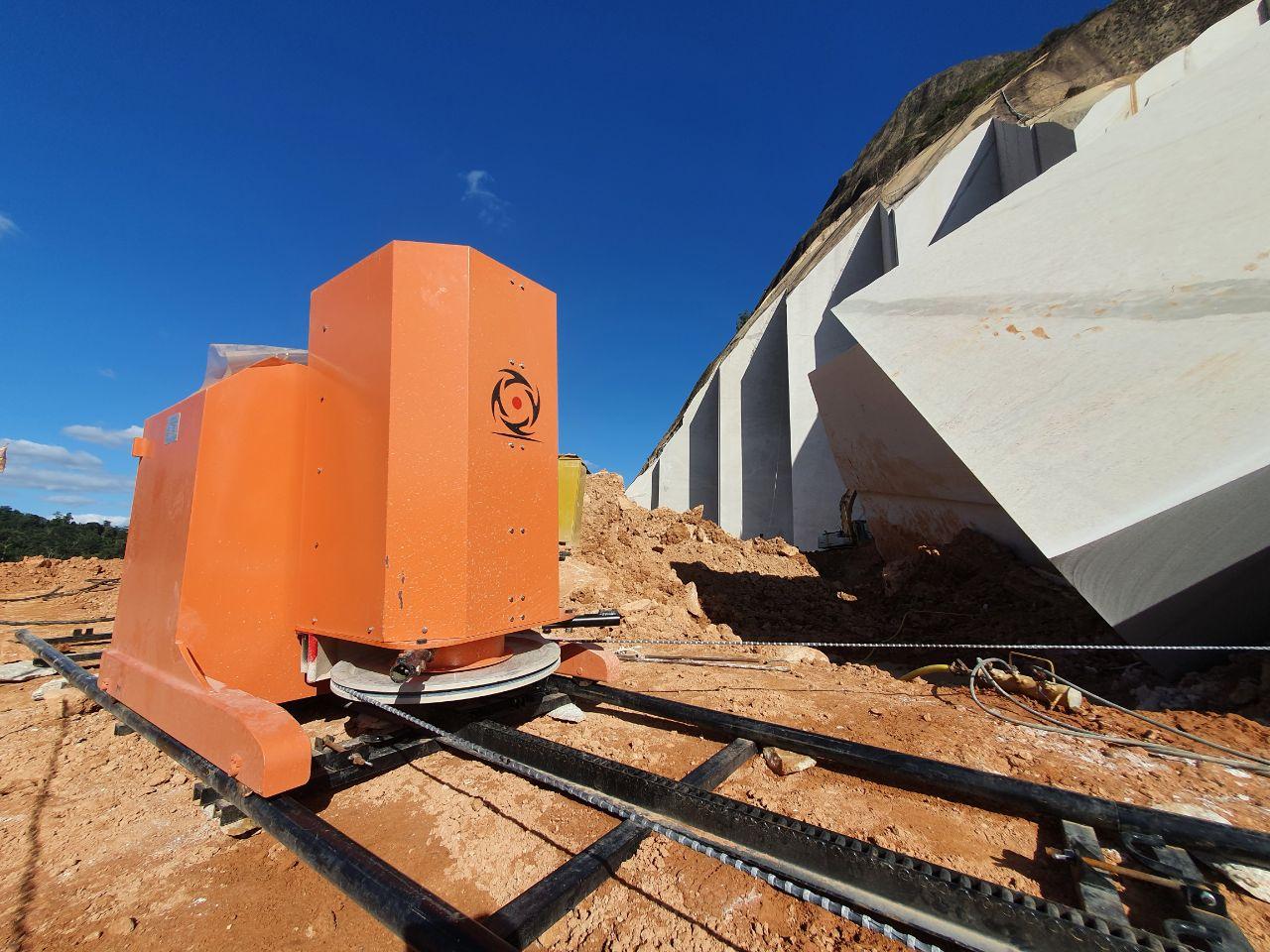

 diamond wire saw cutting machine.jpg


2、 Precautions for installation of Huada diamond wire saw cutting machine - guide rail placement


Put the guide rail on the wooden board to prevent the guide rail from bending and deformation due to uneven ground. At the same time, the wooden board can play a certain damping role; Use a wooden wedge to adjust the guide rail level. If necessary, it can be adjusted by equipment (the machine head can rotate within 360 ° and move laterally).

The inclination of the guide rail shall not exceed 10, otherwise it is not conducive to the normal use of the equipment!




3、 Precautions for installation of Huada diamond wire saw cutting machine - power supply


Before energizing the rope saw cutting machine, confirm that the power supply (voltage and frequency) is consistent with the equipment requirements; Confirm that the power cable wiring is correct, otherwise the electric control system of the equipment will be damaged; The equipment shall be reliably grounded according to the specifications.


The above is about the installation precautions of Huada diamond wire saw cutting machine
