How to operate diamond wire cutting machine for quarry

Author:Huada Quarrying Machine FROM:Stone quarry machine manufacturer TIME:2021-09-23

Diamond wire cutting machine for quarry is mainly used for the mechanical equipment of stone mining

1.The video of diamond wire cutting machine for quarry


2.How to operate diamond wire cutting machine for quarry

Drilling: Drilling is a key preparation. If the drilling is not good, it will directly affect the penetration of the beaded rope and affect the service life and cutting efficiency of the rope. Therefore, the drilling process is particularly important. To cut a large block, three holes must be punched, namely one vertical hole and two horizontal holes.

Threading: When using beaded rope in the domestic stone industry, most of the manual threading method is adopted, that is, the multi-strand loop cord is fixed to one end of the rope, inserted through one hole, and led out from the other hole with an iron wire to pass through. Beaded rope.

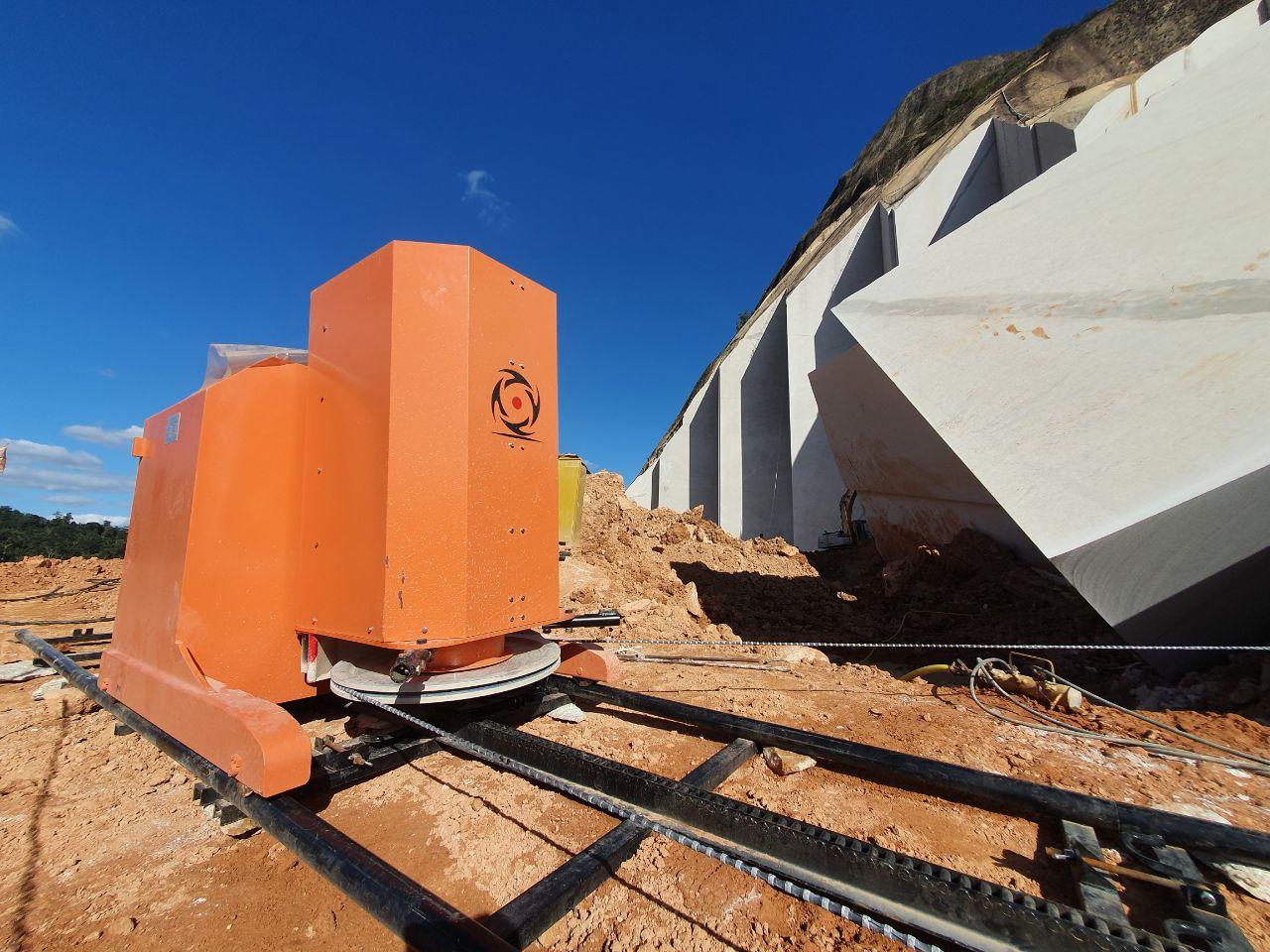

diamond wire cutting machine for quarry.jpg

Equipment installation: After the beaded rope is passed through, install the equipment of the diamond wire saw. Because the equipment is heavy, and after cutting a plane, the equipment needs to be re-adjusted, so it must be equipped with lifting equipment around it, which can be lifted and installed at any time.

Water supply: When cutting stone, because the wire speed of the rope is high, the friction between the rope and the stone is large. If no water is added or insufficient water is added, a lot of heat will be generated between the rope and the stone, which will not only deform the spring and wire rope, but also The springs are melted and bonded together and lose their elasticity, thereby reducing the service life of the diamond wire saw. In order to ensure the quality and service life of the rope, water supply is required, and the water supply must be carried out along the direction of movement of the rope.
