The title positions this rope for granite and marble multi-wire processing, while the saved parameter block labels steel structure, reinforced concrete and normal concrete. That source conflict must be resolved before the rope is specified for a stone factory.
Do not infer a stone recipe from the title
The old body contains no separate granite or marble description. Its only named technology is Huada Even Distribution, presented as a way to improve speed and efficiency. A reliable stone-processing offer still needs the stone, multi-wire machine, wire count, pulley system, target slab thickness and required surface. Without those inputs, changing an application label does not establish the correct bond or assembly.
Saved dimensions require confirmation
The captured table includes Φ10.2 and Φ9.2 mm diameters, bead entries of 40, 48, 44 and 53, rubber-plus-spring assembly, and cutting-speed ranges from 0.5–5.0 m²/h. Production ranges shown in the same source extend from 0.5–2.0 m²/m. These values sit beside construction-material labels, so they should be treated as source references only. Ask the factory to return a complete granite or marble row and confirm that it is intended for simultaneous multi-wire slab cutting.
Multi-wire factory brief
- Granite or marble sample and block dimensions
- Machine model, number of wires and pulley condition
- Slab thickness, finish and production objective
- Confirmed diameter, beads, bond and assembly
- Water, tension, line speed and trial result
During the trial, mark each rope position and inspect slab consistency across the full set. Retain the accepted wire label and complete setup. This produces evidence for repeat orders without carrying the unresolved concrete-table data into a stone application.

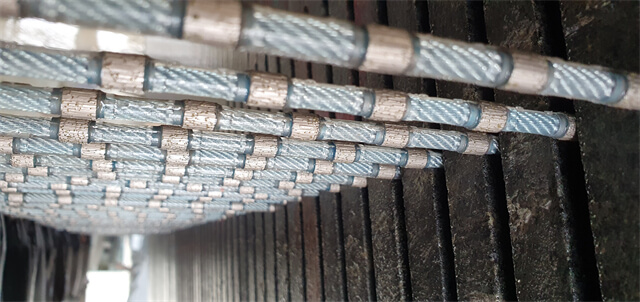

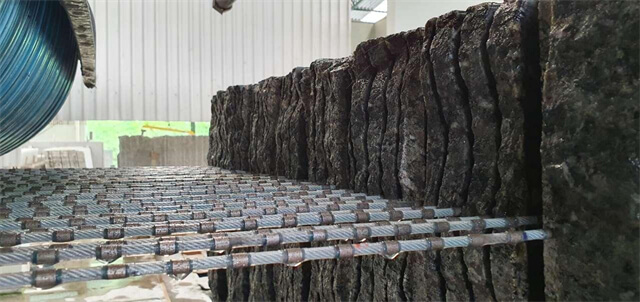

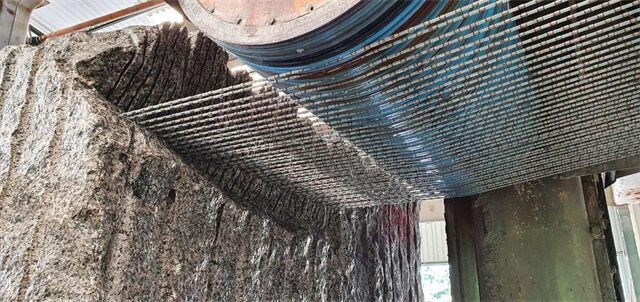

Original product images
