This page covers loose diamond beads for wire assembly. The old specification provides a diameter list but does not assign bead types, bonds or applications to individual sizes, so diameter alone is not enough for a complete order.
Diameters recorded in the catalogue
The saved list contains 5.5, 6.5, 7.5, 8.5, 9.0, 10.5, 11.0, 11.5, 12.0 and 12.5 mm entries for different stones and applications. The first item appears in the old text as “r5.5 mm”; confirm whether that character is a formatting error before ordering.
No beads-per-metre value, assembly method or bond selection is attached to this standalone list. Those choices should be linked to the intended diamond wire record.
Build the request around the finished wire
- Stone or construction material to be cut
- Quarry, block-processing, multi-wire or demolition application
- Finished wire diameter and required bead count
- Cable, springs, rubber or plastic assembly information
- Machine model, operating record and current bead reference
If the request is for replacement beads, send the label and a measured sample from the existing supply. Wear can change the measured diameter, so identify whether the value is new or used.
Items for quotation and receipt
Ask Huada to state the bead reference, new diameter, compatible wire construction, quantity and packaging. At receipt, compare the supplied reference and dimensions with the approved order before the beads enter assembly. This keeps the loose component tied to the wire specification that selected it.

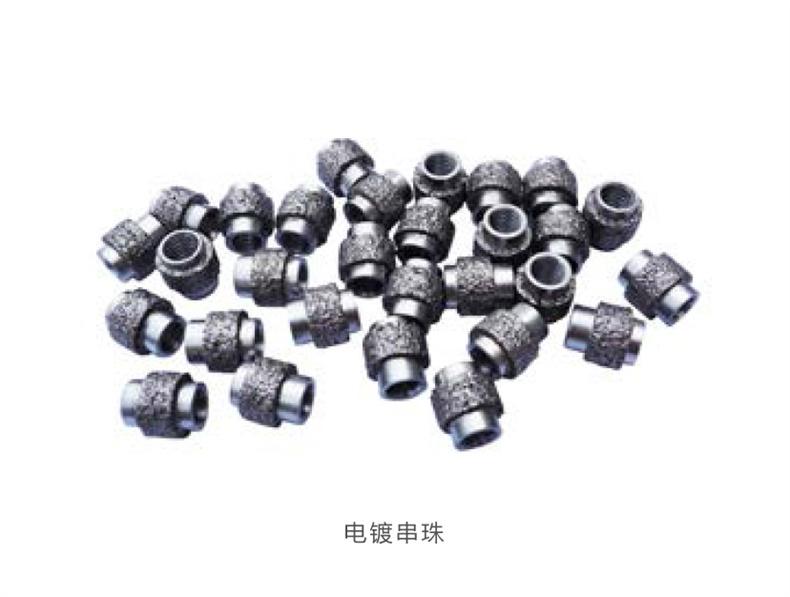

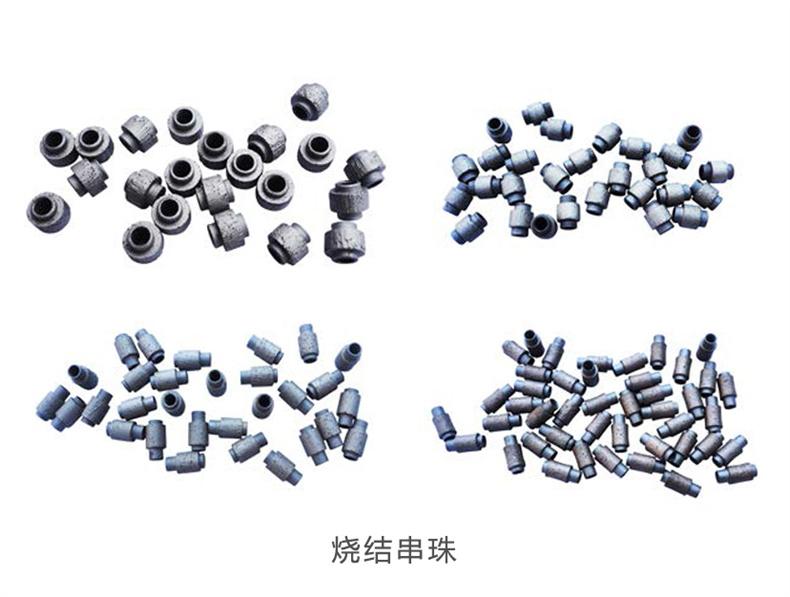

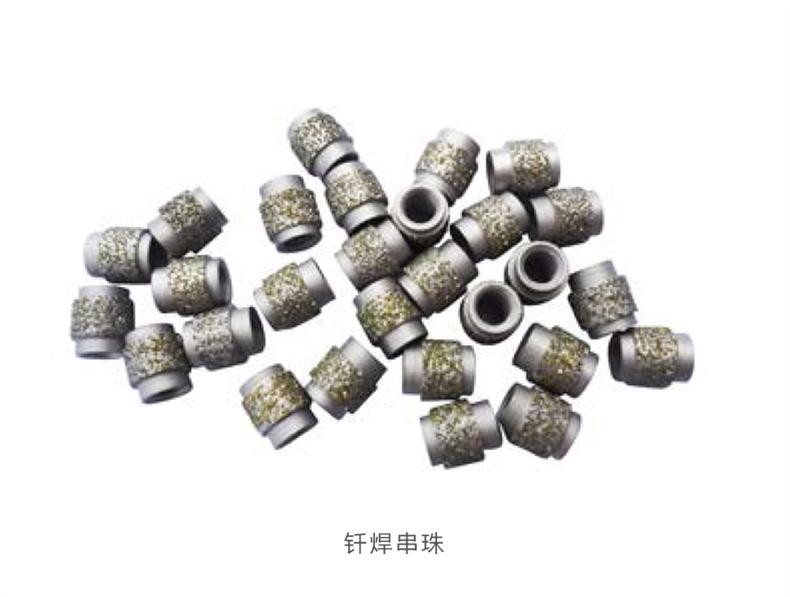

Original product images
