Introduction of Huada stone block cutting machine model

Author:Huada Quarrying Machine FROM:Stone quarry machine manufacturer TIME:2021-09-22

Large-scale stone cutting machine (mining circular saw) is mainly used for stone mining. According to the different specifications of the cut stone, the size of the saw blade is also different. The following introduces the model of Huada stone block cutting machine.

1.The video of Huada stone block cutting machine

2.The model of Huada stone block cutting machine

Product line HD1360-1900 HD1500-2100 HD1950-2450 HD2600-3100
Blade diameter (mm) φ2200*2-φ3600*2 φ2200*2-φ3600*2 φ2400*2-φ4800*2 φ2400*2-φ4800*2
Cut width (mm) 1360-1900 1500-2100 1950-2450 2600-3100
Max. cut depth (mm) 1550 1550 2150 2150
Main motor power (kW) 55*2 55*2 65*2 65*2
Total power (kW) 118 118 138 138
Water consumption (m³/h) 5 5 5 5
Track spacing (mm) 1140 1290 1670 2200
Machine dimensions (mm) 4150*1540*3100 4150*1680*3100 4150*2140*3100(3.6m)
5200*2140*3600(4.8m)
4150*2800*3100(3.6m)
5200*2800*3600(4.8m)
Total weight (kg) ≈8300 ≈8500 10000-11000 11000-12000
The difference between the models of Huada's stone cutting machine is mainly reflected in the diameter of the saw blade, the power of the main motor and the center distance of the track.

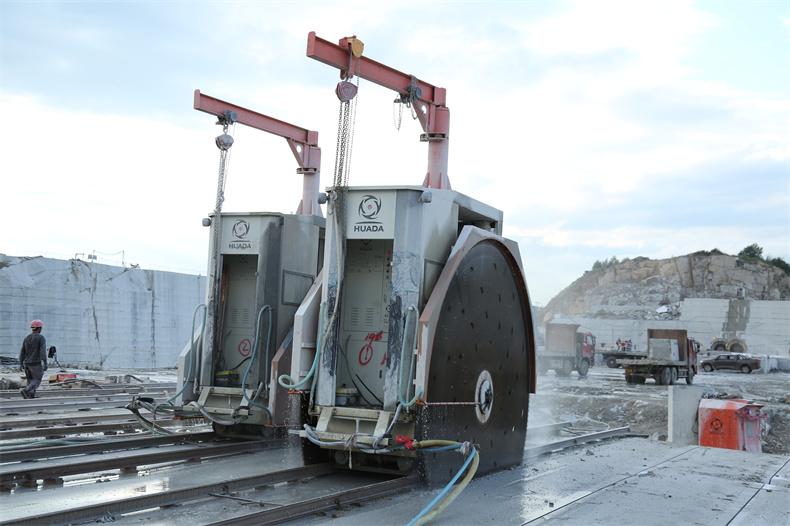

Huada stone block cutting machine.JPG

The above is the model of Huada's stone cutting machine . To learn more about stone mining equipment, welcome to visit Huada's official website.
