This granite trimming wire saw is presented for rapid shaping and small-area cutting of quarry waste material. It combines a 30 kW permanent-magnet drive with whole-machine lifting and adjustable rope geometry.
Granite waste-block application
The old page describes long blocks that leave substandard stone because of cracks, colour features or unsuitable size. For granite, mark the hard inclusions and defect line as well as the target smaller block. Rapid cutting is only useful if the new geometry preserves saleable material and avoids the defects identified before setup.
Adjust the machine around a small cut

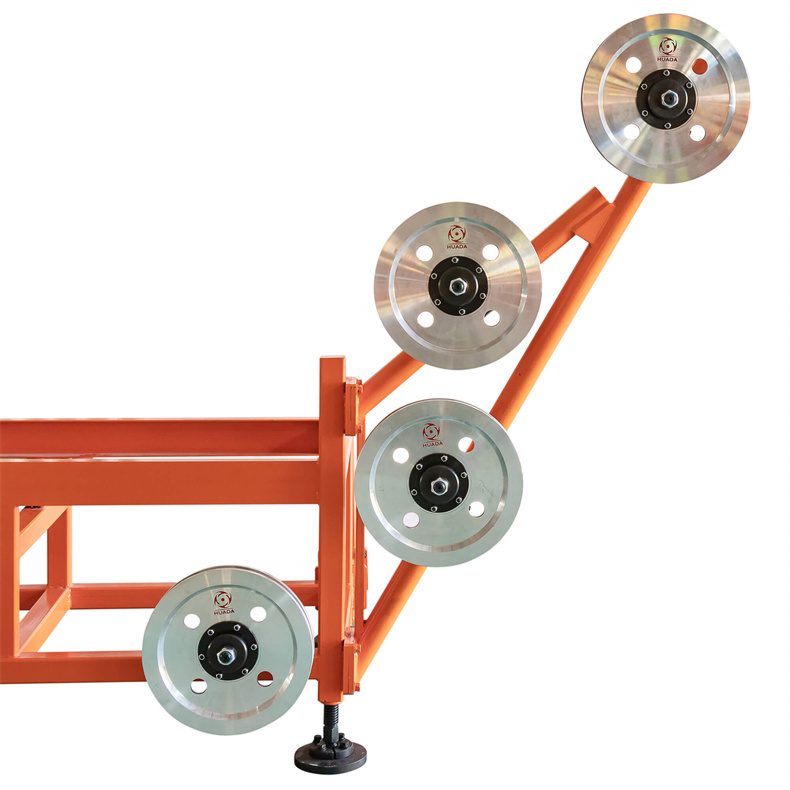

Several rope-winding methods are listed so the rope need not be cut. The small flywheel height can change the wire angle, while lifting outriggers and foot plates provide ±10° cut-inclination adjustment. The complete machine can be hoisted for rapid relocation between waste blocks.
Small-area granite trial
- Granite condition, defects and target block drawing
- Lifting points and available working clearance
- Rope path, angle and guide positions
- Wire and cooling plan
- Setup time, cut area, recovered stone and wire condition
The source's 6–10 m²/h figure should be recorded as a manufacturer range and checked on comparable granite.
