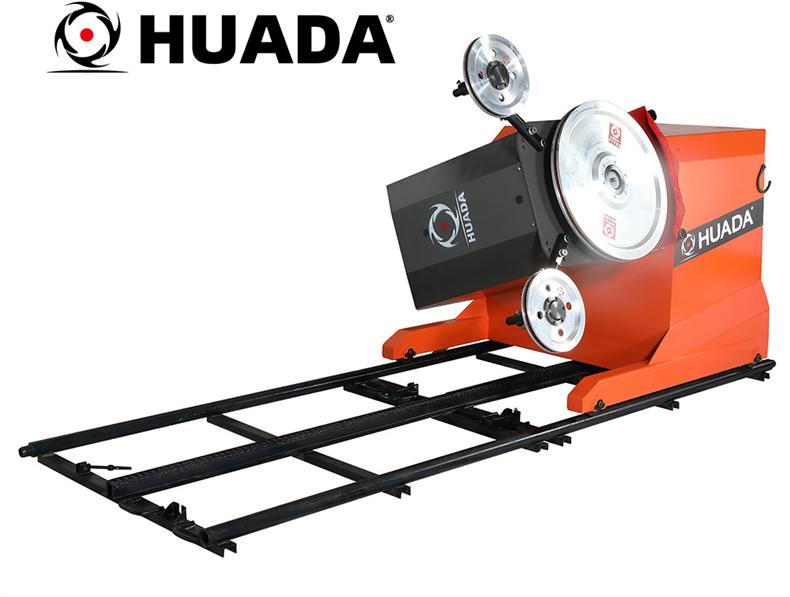

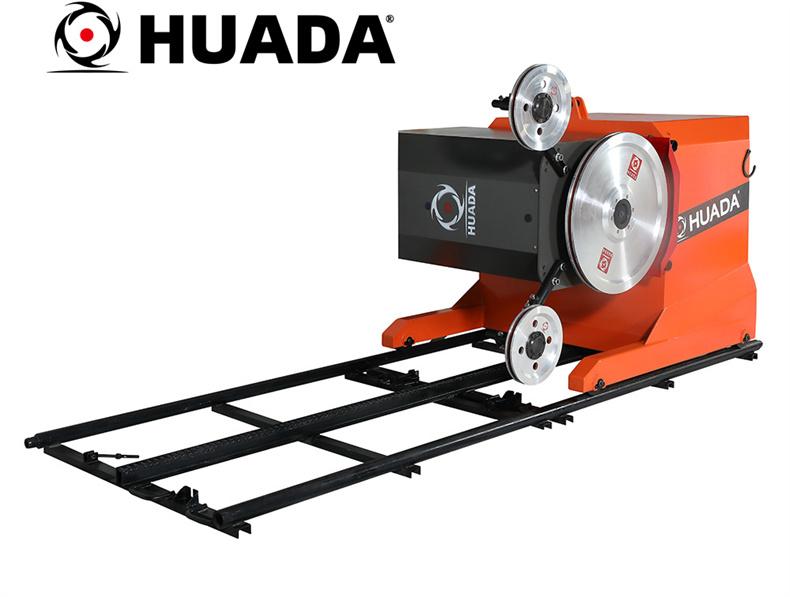

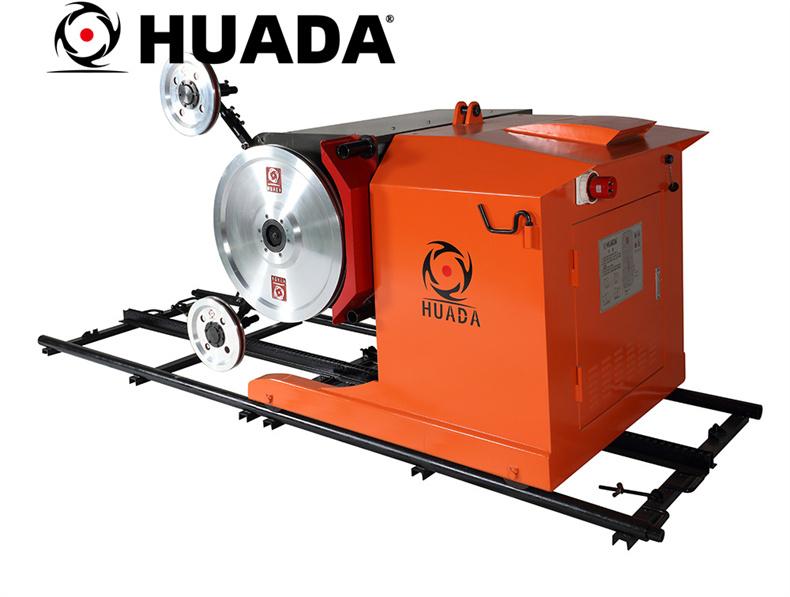

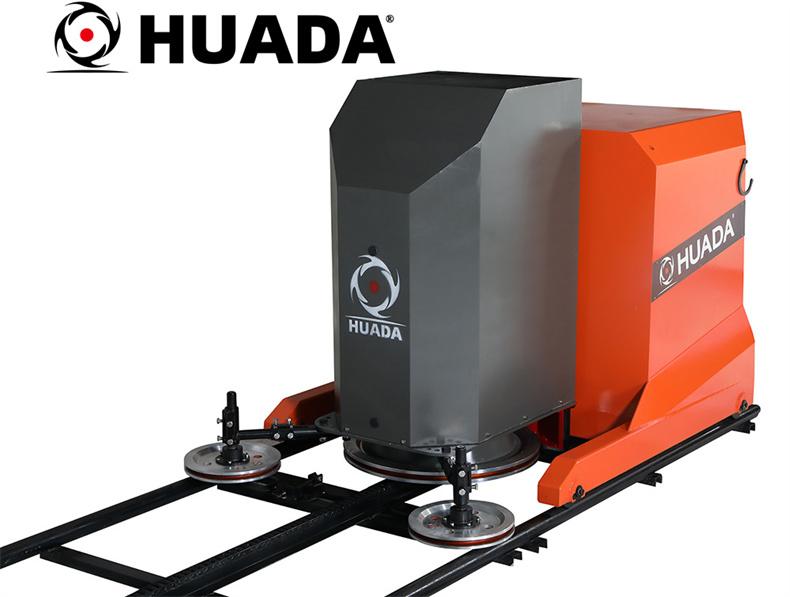

Introduction:Huada 37KW diamond wire saw cutting machine
Price:>10000¥ Please contact with the customer service for specific price details
+8619859567581
Advantages of Huada diamond wire saw cutting machine
1. Excellent structural design
Huada stone wire saw machine adopts special structure design to realize high-precision control and can meet different mining environments.
2. high performance permanent magnet technology
The rope saw adopts permanent magnet synchronous motor, which can effectively improve the mining efficiency by 30%, reduce the energy consumption, reduce the mining cost and improve the yield. Ensure that customers can improve cutting efficiency, save costs and resources, and help customers maximize benefits.
3. Strictly select electrical components
For the electrical components used in the equipment, Huada will strictly select the type, so that Huada stone wire saw machine can still work efficiently, accurately, stably and continuously with low failure rate at different mining sites.
Product model | DWS-37 | DWS-55 | DWS-75 |
Main motor power (kW) | 37 | 55 | 75 |
Total motor power (kW) | 40 | 58 | 79 |
Headpiece overturning | ±180° | ±180° | ±180° |
Linear velocity of main flywheel (m/s) | 0~40 | 0~40 | 0~40 |
Maximum cut spacing (mm) | 1750 | 1950 | 2100 |
Rail length (m) | 2m*3 sections | 2m*5 sections | 2m*5 sections |
Rail weight/section (kg) | 80 | 83 | 85 |
Weight of main unit (kg) | 2515 | 2820 | 3650 |
Machine dimensions (L*W*H) (mm) | 2100*1410*1500 | 2100*1550*1650 | 2210*1700*1750 |
Machine dimensions (L*W2*H2) (mm) | 2100*1300*1680 | 2100*1480*1780 | 2210*1550*1950 |
The company has established "Huada Stone Quarrying Research Institute",to build the Whampoa Military Academy of stone mine development technology and management in China,and to meet the diverse needs of stone mine mining.
As a stone quarrying equipment manufacturer for 20 years,it has a lot of successful experience in stone mining at home and abroad and a perfect stone mining product supply chain ecosystem.
The company is the first in the industry to obtain CE certification and holds more than 80 invention patents,utility model patents and appearancepatents.Meeting the quality requirements of stone mining products.
Products are exported to Italy,Spain,Brazil,South Africa,the United States,the Middle East, Southeast Asia and other countries and regions.
The research and development team of the company has doctors, professors, senior engineers and other industry experts as well as elite talents from Canada,Italy and Taiwan,focusing on the research and development of stone mining equipment and tools.
Provide a full range of services from installation to maintenance.The 24-hours service hotline provides a full range of after-sales services from installation to maintenance.
The Satisfaction Of Our Customers Is Our Motivation!
